Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

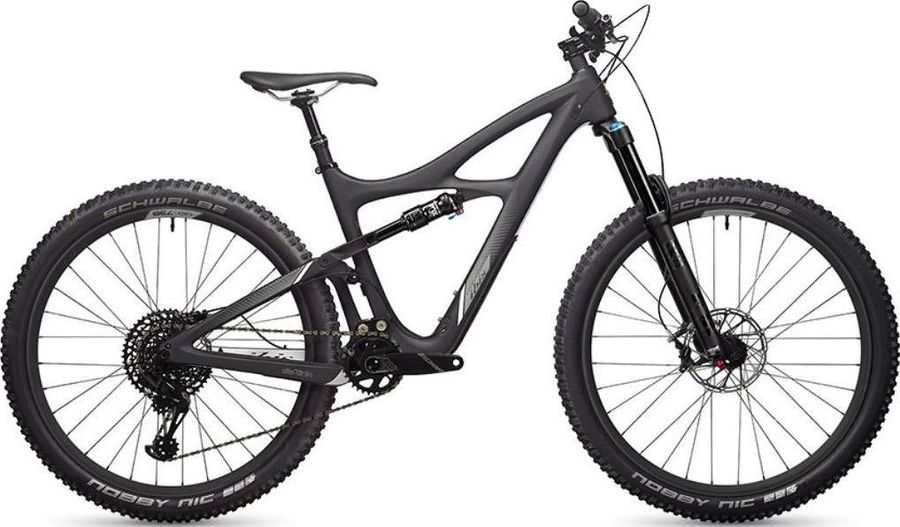

About the Ibis Mojo 3 GX Eagle 2018
The Ibis Mojo 3 GX Eagle 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain. Its features include dropper seatpost e hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Lizard Skins Logo
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Ibis 3D, forged 7075 aluminum, 31.8mm bar, 28.6mm steerer, 50mm - 90mm lengths
|
|---|---|
|
Saddle
|
Ibis custom saddle, chromoly rails
|
|
Headset
|
Cane Creek 40 ZS44/EC49
|
|
Seatpost
|
KS LEV-Si Dropper, length options of 100mm, 125mm or 150mm
|
|
Handlebar
|
Ibis T76 7075 aluminum, 780mm, 20mm rise
|
|
Brake lever
|
Shimano BL/BR-M615
|
|
Brakes
|
Shimano Deore BR-M615
|
|
Crankset
|
SRAM Descendant, aluminum
|
|---|---|
|
Shifter
|
SRAM Eagle GX, trigger, 12-speed
|
|
Bottom bracket
|
Threaded 68mm BSA
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Rims
|
Ibis 738 Very Wide Aluminum Asymmetric Wheelset, 34mm inner width
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic 2.8” Plus or Maxxis Minion 2.6" DHF WT
|
|
Spokes
|
Pillar DB 14/15
|
|
Rear hub
|
Ibis, Boost
|
|
Front hub
|
Ibis, Boost
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
366,0
|
419,0
|
476,0
|
520,0
|
|
b
Seat tube angle
|
74,6º
|
73,6º
|
73,6º
|
73,6º
|
|
c
Top tube length
|
580,0
|
600,0
|
620,0
|
640,0
|
|
d
Head tube length
|
85,0
|
105,0
|
117,0
|
132,0
|
|
e
Head tube angle
|
66,8º
|
66,8º
|
66,8º
|
66,8º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1126,0
|
1137,0
|
1158,0
|
1180,0
|
|
i
Chainstay length
|
425,0
|
425,0
|
425,0
|
425,0
|
|
j
Bottom bracket drop
|
25,0
|
25,0
|
25,0
|
25,0
|
|
k
Stack height
|
578,0
|
592,0
|
602,0
|
616,0
|
|
l
Reach
|
419,0
|
423,0
|
438,0
|
455,0
|
|
m
Standover height
|
695,0
|
719,0
|
723,0
|
750,0
|
|
x
Bottom bracket height
|
330,0
|
330,0
|
330,0
|
330,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
