Ibis Mojo 3 GX Eagle 2019

MTB Trail
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,54 kg
Front travel
140mm
Rear travel
130mm

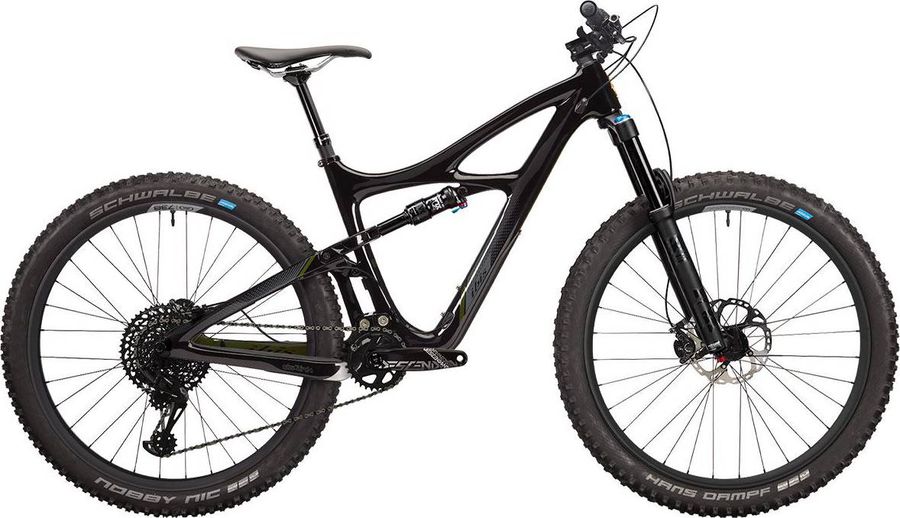

Ibis Mojo 3 GX Eagle 2019

About the Ibis Mojo 3 GX Eagle 2019

The Ibis Mojo 3 GX Eagle 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 2,54 kg.

Features

The Ibis Mojo 3 GX Eagle 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Ibis 31.8mm (50, 60, 70, 80, 90mm)
Saddle
WTB Silverado 142
Headset
Cane Creek 40: ZS44/EC49
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm)
Handlebar
Ibis 780mm Alloy
Discs
Shimano SM-RT86 180
Brakes
Shimano Deore
Drivetrain
Crankset
SRAM Descendant Alloy 175, DUB spindle, 32t Alloy Ring (170,175)
Shifter
SRAM Eagle GX 12 Speed
Bottom bracket
SRAM DUB BSA
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
738 Alloy, Ibis Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy

Geometry

Size SM MD LG XL
a
Seat tube length
368,0
425,0
470,0
514,0
b
Seat tube angle
74,4º
73,8º
73,7º
73,6º
c
Top tube length
583,0
598,0
619,0
640,0
d
Head tube length
85,0
105,0
117,0
132,0
e
Head tube angle
67,1º
67,1º
67,1º
66,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1128,0
1139,0
1160,0
1182,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
18,0
18,0
18,0
18,0
k
Stack height
575,0
594,0
604,0
618,0
l
Reach
423,0
426,0
443,0
459,0
m
Standover height
678,0
714,0
726,0
756,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
-
-
-
-
