BikeWise

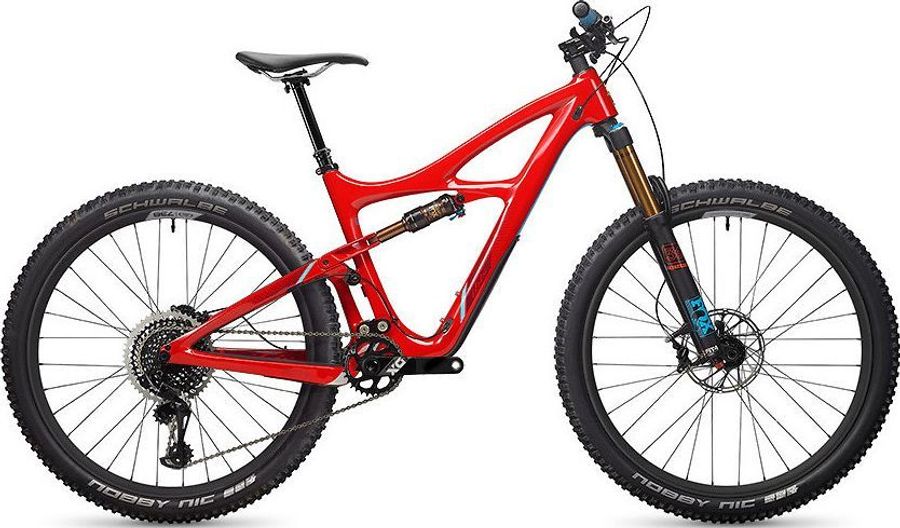

Ibis Mojo 3 X01 Eagle 2018

MTB Trail
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm
Ibis Mojo 3 X01 Eagle 2018

About the Ibis Mojo 3 X01 Eagle 2018

The Ibis Mojo 3 X01 Eagle 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ibis Mojo 3 X01 Eagle 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Logo
Pedals
None included
Components
Steam
Thomson 40mm, 50mm, 60mm, or Ibis 60mm, 70mm
Saddle
Ibis custom, chromoly rails
Headset
Cane Creek 40 ZS44/ZS56
Seatpost
FOX Transfer Dropper
Handlebar
Ibis Carbon, 800mm Hi-Fi (riser) or 760mm Lo-Fi (Flat)
Brake lever
Shimano Deore XT BL/BR-M8000
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM X01 Eagle, carbon, 175mm length with 170mm option
Shifter
SRAM Eagle X01, trigger, 12-speed
Bottom bracket
68mm BSA threaded
Cassette
SRAM XG-1295 X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Ibis 738 Very Wide Aluminum Asymmetric Wheelset, 34mm inner width
Tires
Maxxis Minion 2.5" DHF WT, Schwalbe Nobby Nic 2.8” Plus or Maxxis Minion 2.6" DHF WT
Spokes
Pillar DB 14/15
Rear hub
Ibis, Boost
Front hub
Ibis, Boost

Geometry

Size SM MD LG XL
a
Seat tube length
366,0
419,0
476,0
520,0
b
Seat tube angle
74,6º
73,6º
73,6º
73,6º
c
Top tube length
580,0
600,0
620,0
640,0
d
Head tube length
85,0
105,0
117,0
132,0
e
Head tube angle
66,8º
66,8º
66,8º
66,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1126,0
1137,0
1158,0
1180,0
i
Chainstay length
425,0
425,0
425,0
425,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
578,0
592,0
602,0
616,0
l
Reach
419,0
423,0
438,0
455,0
m
Standover height
695,0
719,0
723,0
750,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
