Ibis Mojo 3 XX1 Eagle 2019

MTB Trail
Groupset
SRAM XX1
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,54 kg
Front travel
140mm
Rear travel
130mm

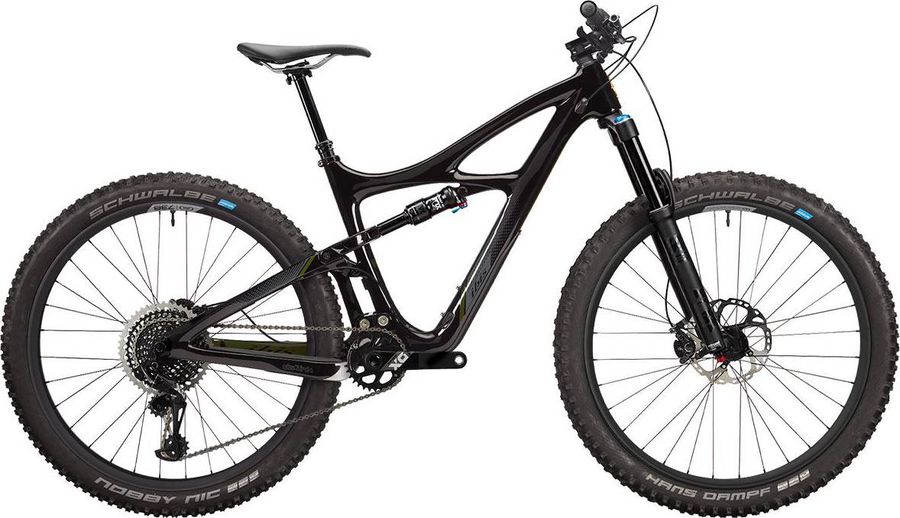

Ibis Mojo 3 XX1 Eagle 2019

About the Ibis Mojo 3 XX1 Eagle 2019

The Ibis Mojo 3 XX1 Eagle 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 2,54 kg.

Features

The Ibis Mojo 3 XX1 Eagle 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Enve Mtn Stem 31.8mm (40, 55, 70mm)
Saddle
WTB Volt Saddle
Headset
Cane Creek 40 ZS44/ZS56
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm)
Handlebar
Enve Carbon DH Handlebar
Discs
Shimano SM-RT86 180
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
SRAM XX1 Eagle 175, DUB spindle, 32t Alloy Ring
Shifter
SRAM Eagle XX1 12 Speed
Bottom bracket
SRAM DUB BSA
Cassette
SRAM XX1 XG1299 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Ibis 742 Carbon, i9 Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy

Geometry

Size SM MD LG XL
a
Seat tube length
368,0
425,0
470,0
514,0
b
Seat tube angle
74,4º
73,8º
73,7º
73,6º
c
Top tube length
583,0
598,0
619,0
640,0
d
Head tube length
85,0
105,0
117,0
132,0
e
Head tube angle
67,1º
67,1º
67,1º
66,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1128,0
1139,0
1160,0
1182,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
18,0
18,0
18,0
18,0
k
Stack height
575,0
594,0
604,0
618,0
l
Reach
423,0
426,0
443,0
459,0
m
Standover height
678,0
714,0
726,0
756,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
-
-
-
-
