Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
153mm

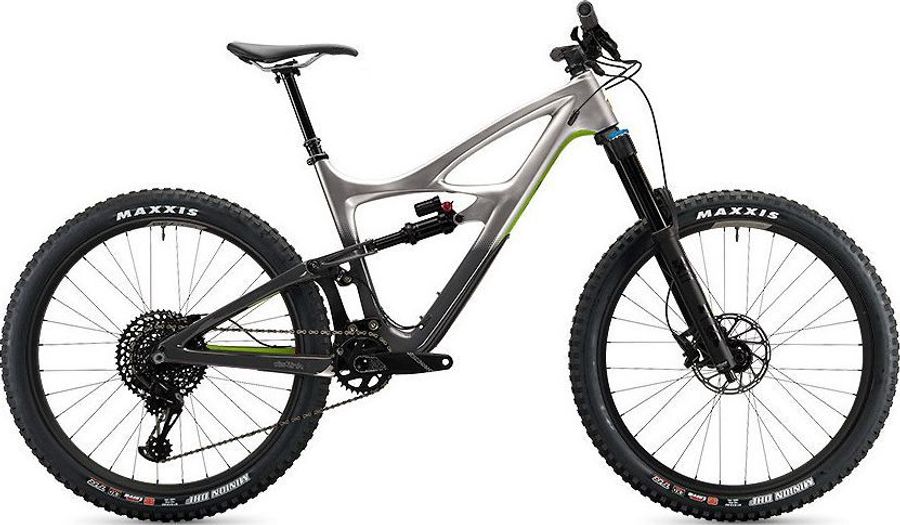

About the Ibis Mojo HD4 GX Eagle 2018
The Ibis Mojo HD4 GX Eagle 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain. Its features include dropper seatpost e hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Lizard Skins Logo
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Ibis 3D 7075 forged, 31.8mm bar, 28.6 steerer, 50 - 90mm length options
|
|---|---|
|
Saddle
|
Ibis custom, chromoly rails
|
|
Headset
|
Cane Creek 40, ZS44/EC49
|
|
Seatpost
|
KS LEV-Si dropper with length options of 100mm, 125mm or 150mm
|
|
Handlebar
|
Ibis 7075 aluminum, 780mm width, 20mm rise, 4 x 9º bend
|
|
Brake lever
|
Shimano BL/BR-M615
|
|
Brakes
|
Shimano Deore BR-M615
|
|
Crankset
|
SRAM Descendant, aluminum
|
|---|---|
|
Shifter
|
SRAM Eagle GX, trigger, 12-speed
|
|
Bottom bracket
|
Threaded 68mm
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 EVOL
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
Ibis 738 Very Wide Asymmetric Wheelset, aluminum, 34mm inner width
|
|---|---|
|
Tires
|
Maxxis Minion DHF 2.6" WT with option for Schwalbe Nobby Nic 2.8” Plus
|
|
Spokes
|
Pillar DB 14/15
|
|
Rear hub
|
Ibis Hubs, Boost
|
|
Front hub
|
Ibis Hubs, Boost
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
362,0
|
393,0
|
445,0
|
483,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
575,0
|
600,0
|
624,0
|
654,0
|
|
d
Head tube length
|
87,0
|
109,0
|
126,0
|
142,0
|
|
e
Head tube angle
|
64,9º
|
64,9º
|
64,9º
|
64,9º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1159,0
|
1188,0
|
1215,0
|
1247,0
|
|
i
Chainstay length
|
426,0
|
426,0
|
426,0
|
426,0
|
|
j
Bottom bracket drop
|
12,0
|
12,0
|
12,0
|
12,0
|
|
k
Stack height
|
566,0
|
586,0
|
601,0
|
616,0
|
|
l
Reach
|
411,0
|
431,0
|
451,0
|
476,0
|
|
m
Standover height
|
689,0
|
711,0
|
725,0
|
753,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
