BikeWise

Ibis Mojo HD4 GX Eagle 2019

MTB Enduro
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,9 kg
Front travel
160mm
Rear travel
153mm

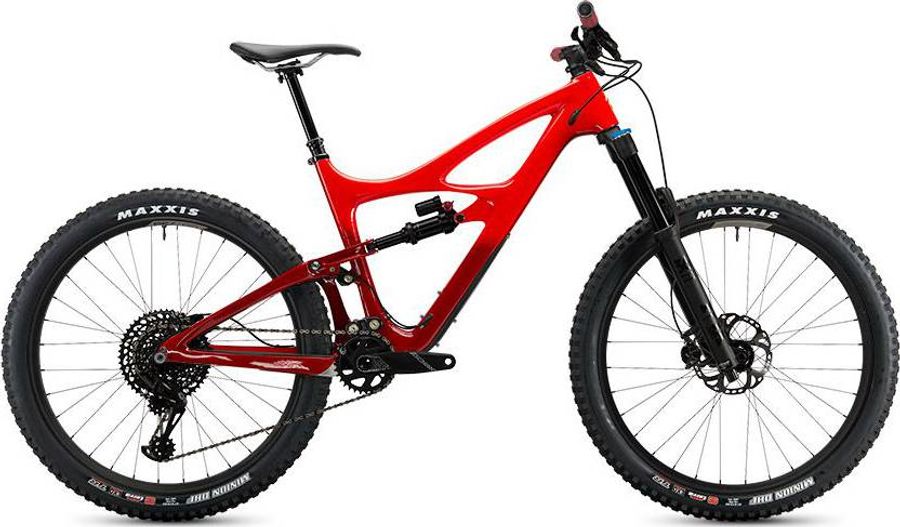

Ibis Mojo HD4 GX Eagle 2019

About the Ibis Mojo HD4 GX Eagle 2019

The Ibis Mojo HD4 GX Eagle 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 2,9 kg.

Features

The Ibis Mojo HD4 GX Eagle 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Ibis 31.8mm (50, 60, 70, 80, 90mm)
Saddle
WTB Silverado 142
Headset
Cane Creek 40 ZS44/ZS56
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm)
Handlebar
Ibis 780mm Alloy
Discs
Shimano SM-RT66 180
Brakes
Shimano Deore
Drivetrain
Crankset
SRAM Descendant Alloy 175, DUB spindle, 32t Alloy Ring (170,175)
Shifter
SRAM Eagle GX 12 Speed
Bottom bracket
SRAM DUB BSA
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber Monocoque
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
738 Alloy, Ibis Hubs
Tires
Maxxis 27.5 x 2.6 Minion DHF WT

Geometry

Size SM MD LG XL
a
Seat tube length
362,0
393,0
445,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
575,0
600,0
624,0
654,0
d
Head tube length
87,0
109,0
126,0
142,0
e
Head tube angle
64,9º
64,9º
64,9º
64,9º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
118,0
118,0
118,0
118,0
h
Wheelbase
1159,0
1188,0
1215,0
1247,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
566,0
586,0
601,0
616,0
l
Reach
411,0
431,0
451,0
476,0
m
Standover height
689,0
711,0
725,0
753,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
733,0
762,0
789,0
821,0
