Ibis Mojo HD4 SRAM NX 2018

MTB Enduro
Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
153mm

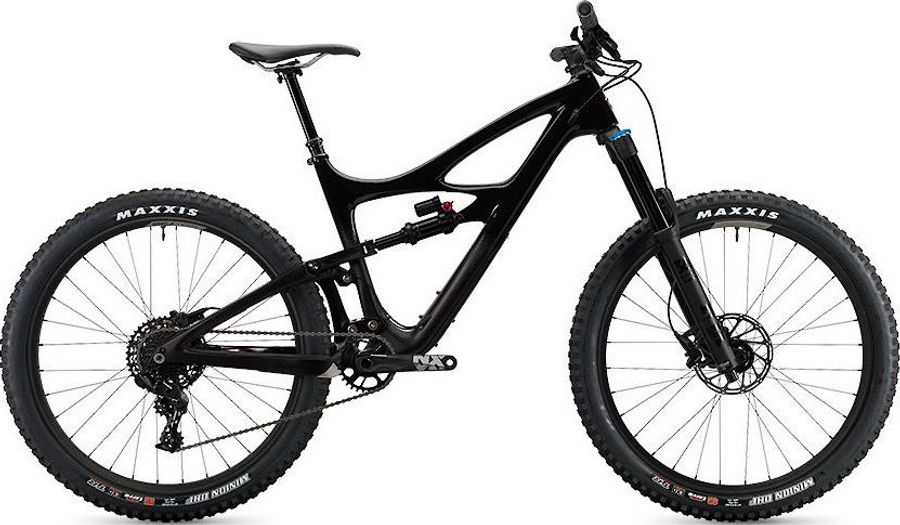

Ibis Mojo HD4 SRAM NX 2018

About the Ibis Mojo HD4 SRAM NX 2018

The Ibis Mojo HD4 SRAM NX 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ibis Mojo HD4 SRAM NX 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Logo
Pedals
None included
Components
Steam
Ibis 3D, forged 7075 aluminum, 31.8mm bar, 28.6mm steerer, 50 - 90mm length options
Saddle
Ibis custom saddle, chromoly rails
Headset
Cane Creek 40, ZS44/EC49
Seatpost
KS LEV-Si dropper with length options of 100mm, 125mm or 150mm
Handlebar
Ibis 7075 aluminum, 780mm wide, 20mm rise, 4 x 9º bend
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM NX 175mm length
Shifter
SRAM NX, trigger, black, 11-speed
Bottom bracket
Threaded 68mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
Ibis 738 Very Wide Asymmetric Wheelset, aluminum, 34mm inner width
Tires
Maxxis Minion DHF 2.6" WT or Schwalbe Nobby Nic 2.8” Plus
Spokes
Pillar DB 14/15
Rear hub
Ibis, Boost
Front hub
Ibis, Boost

Geometry

Size SM MD LG XL
a
Seat tube length
362,0
393,0
445,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
575,0
600,0
624,0
654,0
d
Head tube length
87,0
109,0
126,0
142,0
e
Head tube angle
64,9º
64,9º
64,9º
64,9º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1159,0
1188,0
1215,0
1247,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
566,0
586,0
601,0
616,0
l
Reach
411,0
431,0
451,0
476,0
m
Standover height
689,0
711,0
725,0
753,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
-
-
-
-
