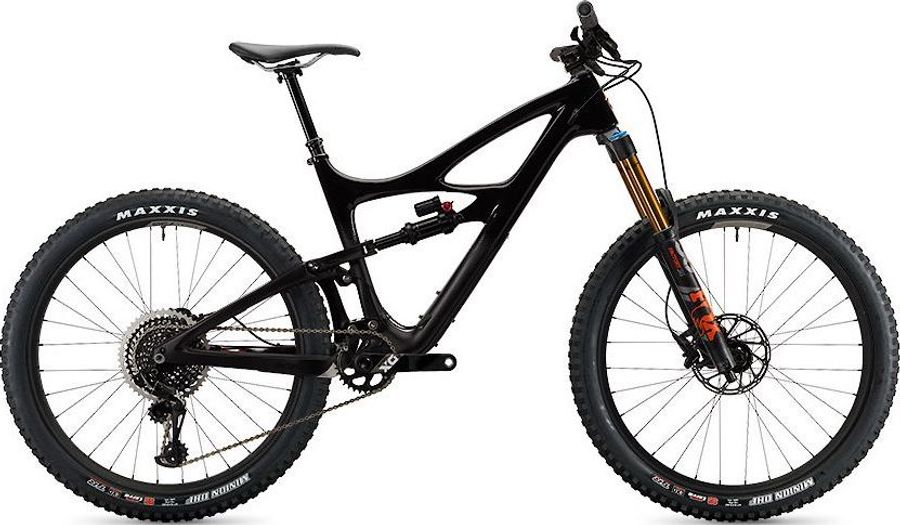

Ibis Mojo HD4 SRAM X01 Eagle 2018

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
153mm
Ibis Mojo HD4 SRAM X01 Eagle 2018

About the Ibis Mojo HD4 SRAM X01 Eagle 2018

The Ibis Mojo HD4 SRAM X01 Eagle 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ibis Mojo HD4 SRAM X01 Eagle 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Logo
Pedals
None included
Components
Steam
Thomson 40mm, 50mm, 60mm, or Ibis 60mm, 70mm
Saddle
Ibis custom saddle, chromoly rails
Headset
Cane Creek 40, ZS44/ZS56
Seatpost
FOX Transfer dropper
Handlebar
Ibis Carbon, 800mm width Hi-Fi (riser) or 760mm Lo-Fi (Flat)
Brake lever
Shimano Deore XT BL/BR-M8000
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM X01 Eagle, carbon, 175mm length with 170mm option
Shifter
SRAM Eagle X01, trigger, 12-speed
Bottom bracket
Threaded 68mm
Cassette
SRAM XG-1295 X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 EVOL
Front suspension
Fox 36 Float Factory
Wheels
Rims
Ibis 738 Very Wide Asymmetric Wheelset, aluminum, 34mm inner width
Tires
Maxxis Minion DHF 2.6" WT with option for Schwalbe Nobby Nic 2.8” Plus
Spokes
Pillar DB 14/15
Rear hub
Ibis Hubs, Boost
Front hub
Ibis Hubs, Boost

Geometry

Size SM MD LG XL
a
Seat tube length
362,0
393,0
445,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
575,0
600,0
624,0
654,0
d
Head tube length
87,0
109,0
126,0
142,0
e
Head tube angle
64,9º
64,9º
64,9º
64,9º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1159,0
1188,0
1215,0
1247,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
566,0
586,0
601,0
616,0
l
Reach
411,0
431,0
451,0
476,0
m
Standover height
689,0
711,0
725,0
753,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
-
-
-
-
