Ibis Mojo HD4 SRAM XX1 Eagle 2018

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
153mm

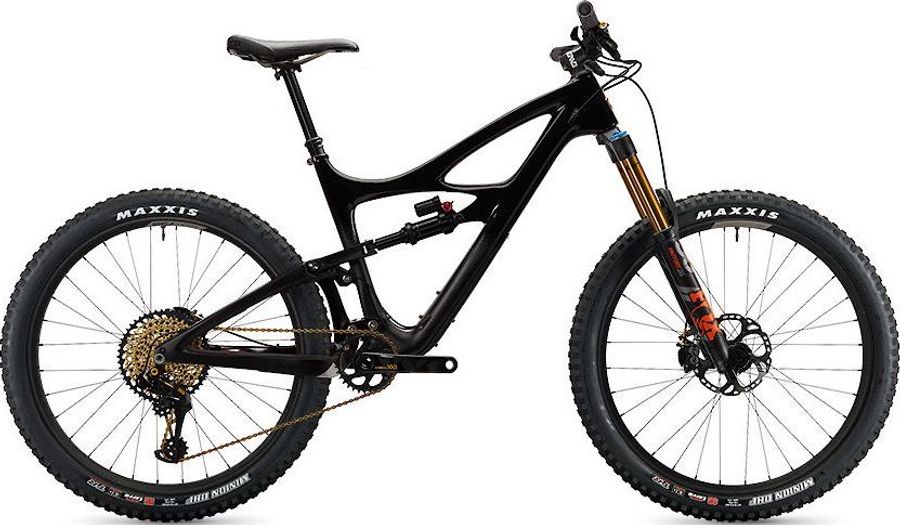

Ibis Mojo HD4 SRAM XX1 Eagle 2018

About the Ibis Mojo HD4 SRAM XX1 Eagle 2018

The Ibis Mojo HD4 SRAM XX1 Eagle 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Ibis Mojo HD4 SRAM XX1 Eagle 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Logo
Pedals
None included
Components
Steam
Enve Mountain, carbon with 40mm, 55mm, 70mm length options, +/- 6° rise
Saddle
WTB Volt, titanium rails
Headset
Cane Creek 40, ZS44/ZS56
Seatpost
KS LEV Carbon, choice of 175mm, 150mm, 125mm, 100mm, 65mm
Handlebar
Enve Carbon DH, 800mm width, 23mm rise, 9º sweep, 5º tip
Brake lever
Shimano Saint M820
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
SRAM XX1 Eagle, carbon, 175mm length with 170mm option
Shifter
SRAM XX1 Eagle, trigger, 12-speed
Bottom bracket
Threaded 68mm
Cassette
SRAM XX1 XG1299 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 EVOL
Front suspension
Fox 36 Float Factory
Wheels
Rims
Ibis 742 Ultra Wide Carbon Fiber Asymmetric
Tires
Maxxis Minion DHF 2.6" WT with option for Schwalbe Nobby Nic 2.8” Plus
Spokes
Sapim CX-Ray
Rear hub
Industry Nine Torch
Front hub
Industry Nine Torch

Geometry

Size SM MD LG XL
a
Seat tube length
362,0
393,0
445,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
575,0
600,0
624,0
654,0
d
Head tube length
87,0
109,0
126,0
142,0
e
Head tube angle
64,9º
64,9º
64,9º
64,9º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1159,0
1188,0
1215,0
1247,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
566,0
586,0
601,0
616,0
l
Reach
411,0
431,0
451,0
476,0
m
Standover height
689,0
711,0
725,0
753,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
-
-
-
-
