Ibis Mojo HD4 X01 Eagle 2019

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,9 kg
Front travel
160mm
Rear travel
153mm

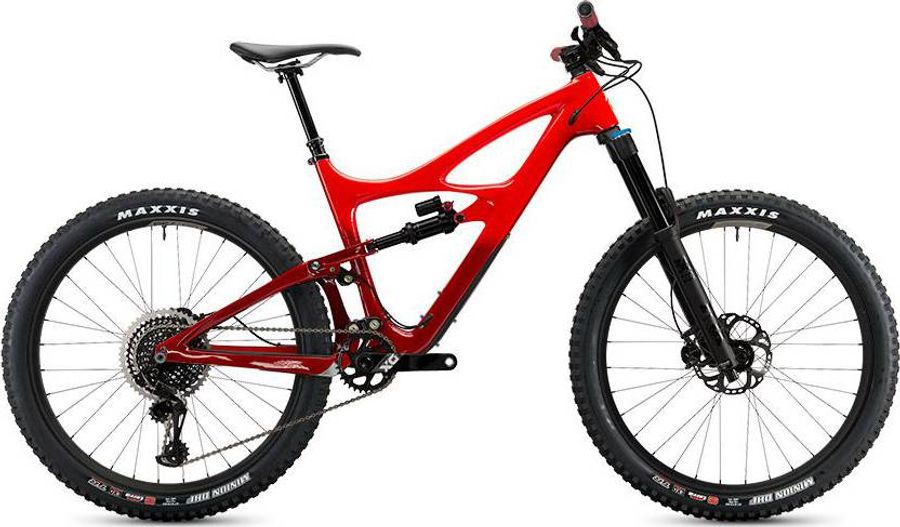

Ibis Mojo HD4 X01 Eagle 2019

About the Ibis Mojo HD4 X01 Eagle 2019

The Ibis Mojo HD4 X01 Eagle 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 2,9 kg.

Features

The Ibis Mojo HD4 X01 Eagle 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Thomson 40, 50 or 60mm, or Ibis 60 or 70mm
Saddle
WTB Silverado 142
Headset
Cane Creek 40 ZS44/ZS56
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm)
Handlebar
Ibis 800mm Carbon (10 or 30mm rise)
Discs
Shimano SM-RT86 180
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM X01 Eagle 175, DUB spindle, 32t Alloy Ring
Shifter
SRAM Eagle X01 12 Speed
Bottom bracket
SRAM DUB BSA
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber Monocoque
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
Ibis 738 Alloy, Ibis Hubs
Tires
Maxxis 27.5 x 2.6 Minion DHF WT

Geometry

Size SM MD LG XL
a
Seat tube length
362,0
393,0
445,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
575,0
600,0
624,0
654,0
d
Head tube length
87,0
109,0
126,0
142,0
e
Head tube angle
64,9º
64,9º
64,9º
64,9º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
118,0
118,0
118,0
118,0
h
Wheelbase
1159,0
1188,0
1215,0
1247,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
566,0
586,0
601,0
616,0
l
Reach
411,0
431,0
451,0
476,0
m
Standover height
689,0
711,0
725,0
753,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
733,0
762,0
789,0
821,0
