Ibis Mojo HD4 XT 1x 2019

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,9 kg
Front travel
160mm
Rear travel
153mm

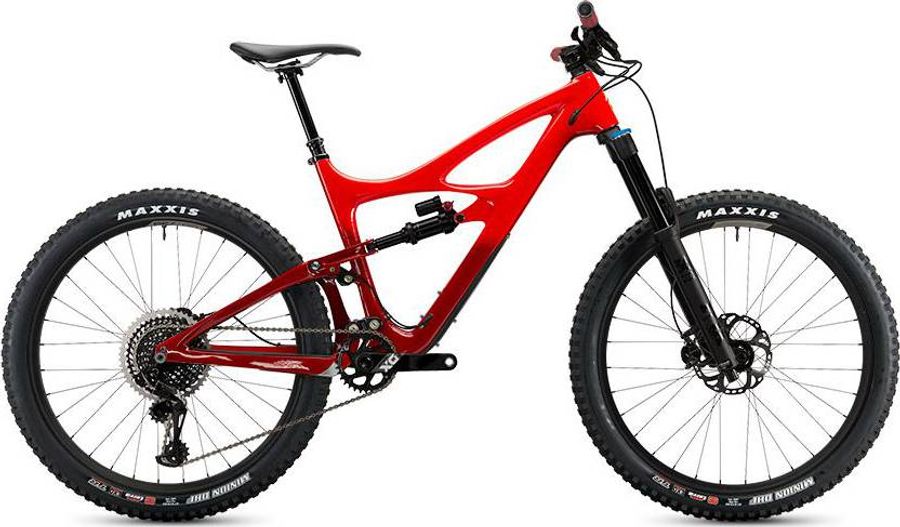

Ibis Mojo HD4 XT 1x 2019

About the Ibis Mojo HD4 XT 1x 2019

The Ibis Mojo HD4 XT 1x 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 2,9 kg.

Features

The Ibis Mojo HD4 XT 1x 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Saddle
WTB Silverado 142
Headset
Cane Creek 40 ZS44/ZS56
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm)
Handlebar
Ibis 800mm Carbon (10 or 30mm rise)
Discs
Shimano SM-RT86 180
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT M8000 175, 24mm spindle, 30t Alloy Ring
Shifter
Shimano XT
Bottom bracket
Shimano XT MT800
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Frameset
Frame
Carbon Fiber Monocoque
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
738 Alloy, Ibis Hubs
Tires
Maxxis 27.5 x 2.6 Minion DHF WT

Geometry

Size SM MD LG XL
a
Seat tube length
362,0
393,0
445,0
483,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
575,0
600,0
624,0
654,0
d
Head tube length
87,0
109,0
126,0
142,0
e
Head tube angle
64,9º
64,9º
64,9º
64,9º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
118,0
118,0
118,0
118,0
h
Wheelbase
1159,0
1188,0
1215,0
1247,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
566,0
586,0
601,0
616,0
l
Reach
411,0
431,0
451,0
476,0
m
Standover height
689,0
711,0
725,0
753,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
733,0
762,0
789,0
821,0
