Ibis Mojo HD5 GX 2021

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,54 kg
Front travel
170mm
Rear travel
153mm

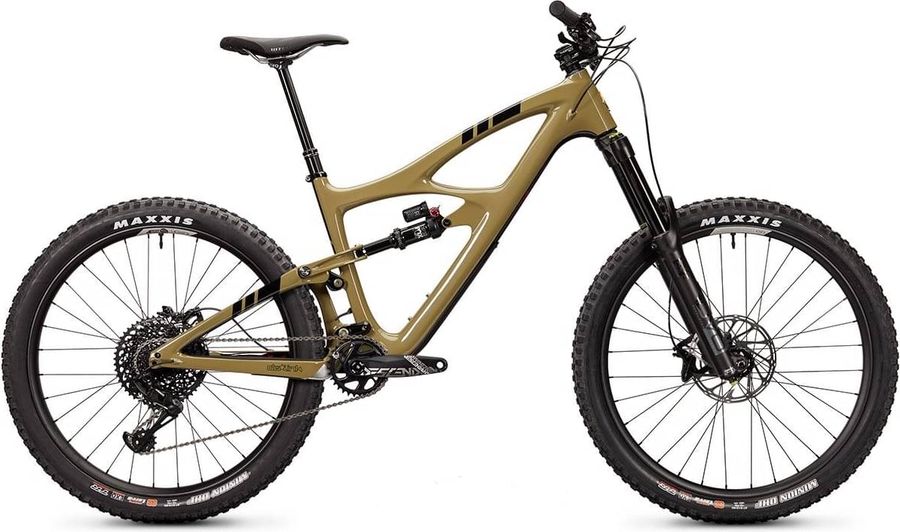

Ibis Mojo HD5 GX 2021

About the Ibis Mojo HD5 GX 2021

The Ibis Mojo HD5 GX 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 2,54 kg.

Features

The Ibis Mojo HD5 GX 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skin Charger
Components
Steam
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Saddle
WTB Silverado 142
Headset
ZS44 upper / ZS56 lower
Seatpost
Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post.
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Discs
SRAM Centerline 200mm Front/180mm Rear
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant Alloy 175, DUB spindle, 32t Alloy Ring (170mm for S/M, 175mm for L/XL)
Shifter
SRAM GX Eagle
Bottom bracket
Threaded (73mm English threaded)
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
DVO Onyx D1
Rear suspension
Fox Float DPX2 Performance EVOL
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Maxxis Assegai EXO + WT 27.5" x 2.5"

Geometry

Size SM MD LG XL
a
Seat tube length
356,0
368,0
419,0
470,0
b
Seat tube angle
75,8º
75,8º
75,8º
75,8º
c
Top tube length
589,0
613,0
642,0
676,0
d
Head tube length
109,0
126,0
142,0
158,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
42,0
41,0
41,0
g
Trail
126,0
126,0
126,0
126,0
h
Wheelbase
1198,0
1225,0
1257,0
1294,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
602,0
618,0
633,0
647,0
l
Reach
434,0
454,0
479,0
510,0
m
Standover height
703,0
717,0
738,0
757,0
x
Bottom bracket height
351,0
351,0
351,0
351,0
y
Front center
761,0
788,0
820,0
857,0
