Ibis Mojo HD5 X01 AXS 2020

MTB Enduro
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,54 kg
Front travel
170mm
Rear travel
153mm

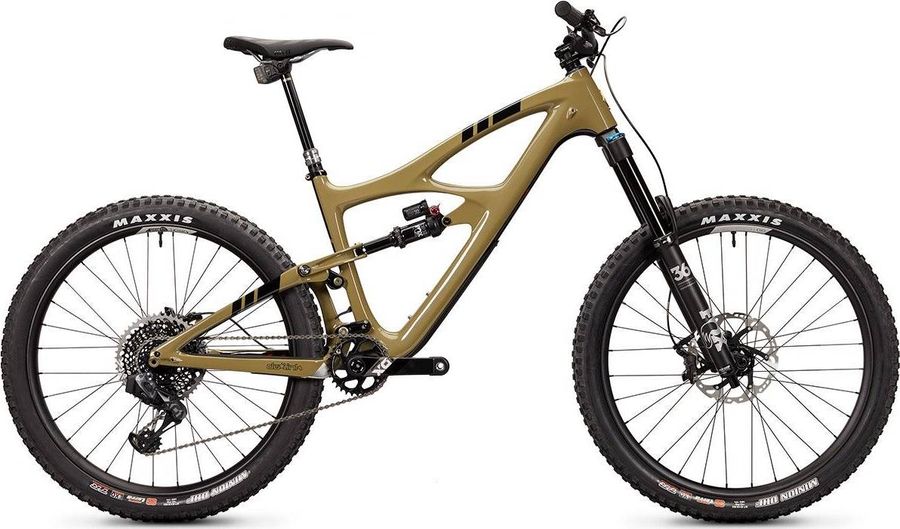

Ibis Mojo HD5 X01 AXS 2020

About the Ibis Mojo HD5 X01 AXS 2020

The Ibis Mojo HD5 X01 AXS 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 2,54 kg.

Features

The Ibis Mojo HD5 X01 AXS 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Saddle
WTB Silverado Pro 142mm width
Headset
ZS44 upper / ZS56 lower
Seatpost
SRAM Reverb AXS Dropper (125, 150 or 170mm)
Handlebar
Ibis 800mm Carbon (30mm rise)
Discs
Shimano SM-RT86 200/180
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
SRAM X01 Eagle, DUB spindle, 32t Alloy Ring (170mm or 175mm)
Shifter
SRAM X01 AXS 2 Button Eagle Triggers
Bottom bracket
Threaded (73mm English threaded)
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Carbon Fiber Monocoque
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Maxxis Assegai EXO + WT 27.5" x 2.5"

Geometry

Size SM MD LG XL
a
Seat tube length
356,0
368,0
419,0
470,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
589,0
613,0
642,0
676,0
d
Head tube length
109,0
126,0
142,0
158,0
e
Head tube angle
64,2º
64,2º
64,2º
64,2º
f
Rake
39,0
38,0
38,0
37,0
g
Trail
132,0
132,0
132,0
132,0
h
Wheelbase
1191,0
1218,0
1250,0
1287,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
602,0
618,0
633,0
647,0
l
Reach
434,0
454,0
479,0
510,0
m
Standover height
703,0
717,0
738,0
757,0
x
Bottom bracket height
351,0
351,0
351,0
351,0
y
Front center
754,0
781,0
813,0
850,0
