Ibis Mojo HD5 XX1 AXS 2021

MTB Enduro
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
2,54 kg
Front travel
170mm
Rear travel
153mm

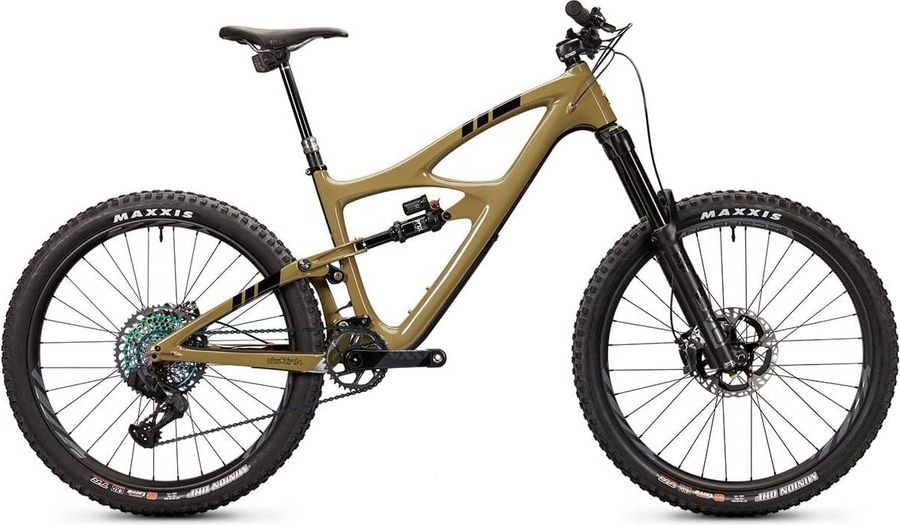

Ibis Mojo HD5 XX1 AXS 2021

About the Ibis Mojo HD5 XX1 AXS 2021

The Ibis Mojo HD5 XX1 AXS 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 2,54 kg.

Features

The Ibis Mojo HD5 XX1 AXS 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skin Charger
Components
Steam
Enve Mtn Stem 31.8mm S/M: 35mm, L/XL: 50mm
Saddle
WTB Silverado 142
Headset
ZS44 upper / ZS56 lower
Seatpost
SRAM Reverb AXS Dropper S: 125mm, M: 150mm, L/XL: 170mm
Handlebar
Enve M6 Bar 780mm
Discs
Shimano RT-MT900 200/180
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
SRAM XX1 Eagle 170 or 175mm, DUB spindle, 32t Alloy Ring
Shifter
SRAM XX1 AXS 2 Button Eagle Triggers
Bottom bracket
Threaded (73mm English threaded)
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
DVO Onyx D1
Rear suspension
Fox Float DPX2 Performance EVOL
Wheels
Rims
Ibis S35 Carbon Rims / 27.5" / Industry 9 Hydra Hubs
Tires
Maxxis Assegai EXO + WT 27.5" x 2.5"

Geometry

Size SM MD LG XL
a
Seat tube length
356,0
368,0
419,0
470,0
b
Seat tube angle
75,8º
75,8º
75,8º
75,8º
c
Top tube length
589,0
613,0
642,0
676,0
d
Head tube length
109,0
126,0
142,0
158,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
42,0
41,0
41,0
g
Trail
126,0
126,0
126,0
126,0
h
Wheelbase
1198,0
1225,0
1257,0
1294,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
602,0
618,0
633,0
647,0
l
Reach
434,0
454,0
479,0
510,0
m
Standover height
703,0
717,0
738,0
757,0
x
Bottom bracket height
351,0
351,0
351,0
351,0
y
Front center
761,0
788,0
820,0
857,0
