Ibis Mojo SLX 2020

MTB Trail
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,11 kg
Front travel
140mm
Rear travel
130mm
Ibis Mojo SLX 2020

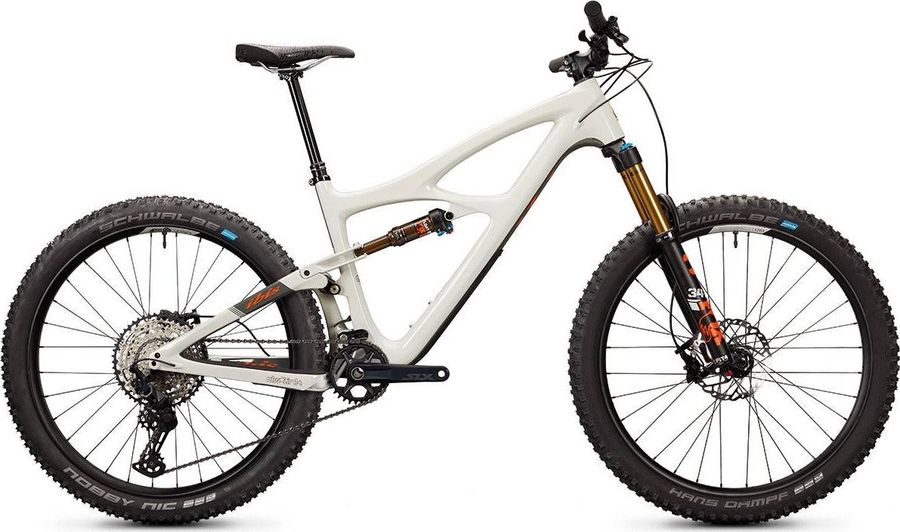

About the Ibis Mojo SLX 2020

The Ibis Mojo SLX 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 12,11 kg.

Features

The Ibis Mojo SLX 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Saddle
WTB Silverado, 142mm
Headset
ZS44 upper / ZS56 lower
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm). Note there is a 250lb rider weight limit on this post.
Handlebar
Ibis 780mm Aluminum Handlebar, 4 x 9 degree bend, 20mm rise, 250g
Brakes
Shimano SLX BR-M7100 425 (BL-M7100) g Hydraulic disc brake 2 piston
Average weight (g)
425 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03S Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano SLX M7100 170 or 175mm, 24mm spindle, 32t Alloy Ring
Shifter
Shimano SLX M7100 12 speed
Bottom bracket
Threaded BB (73mm BSA)
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy

Geometry

Size SM MD LG XL
a
Seat tube length
360,0
368,0
419,0
470,0
b
Seat tube angle
76,6º
76,6º
76,6º
76,6º
c
Top tube length
574,0
597,0
626,0
660,0
d
Head tube length
109,0
126,0
142,0
158,0
e
Head tube angle
65,4º
65,4º
65,4º
65,4º
f
Rake
-
-
-
-
g
Trail
123,0
123,0
123,0
123,0
h
Wheelbase
1160,0
1187,0
1219,0
1256,0
i
Chainstay length
419,0
419,0
419,0
419,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
580,0
595,0
610,0
624,0
l
Reach
434,0
454,0
479,0
509,0
m
Standover height
674,0
684,0
714,0
736,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
-
-
-
-
