Ibis Ripley NX Eagle 2020

MTB Trail
Groupset
SRAM NX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
2,27 kg
Front travel
130mm
Rear travel
120mm

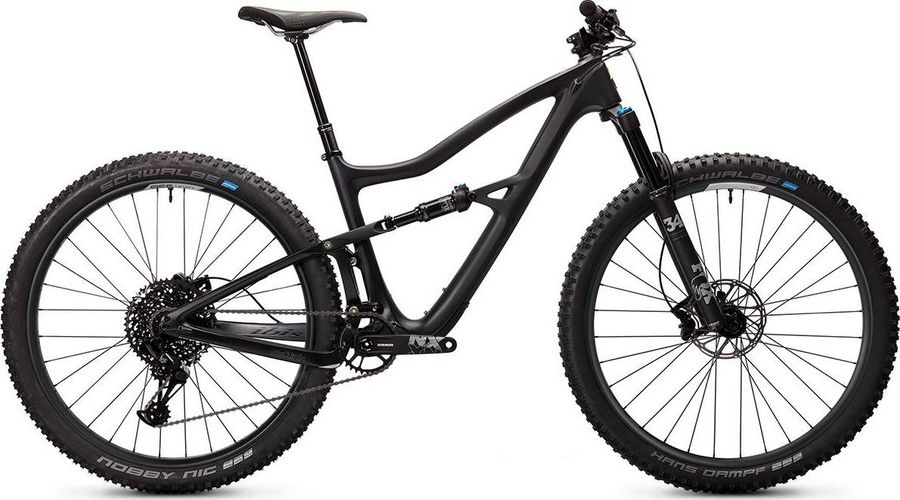

Ibis Ripley NX Eagle 2020

About the Ibis Ripley NX Eagle 2020

The Ibis Ripley NX Eagle 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 2,27 kg.

Features

The Ibis Ripley NX Eagle 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Ibis 31.8mm (50, 60, 70, 80, 90mm)
Saddle
WTB Silverado 142
Headset
Cane Creek 40 ZS44/ZS56
Seatpost
KS E30i Dropper (125 or 150mm)
Handlebar
Ibis 780mm Alloy
Discs
SRAM Centerline 180 rotors
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM NX Eagle, DUB spindle, 30t Steel Ring
Shifter
SRAM NX 12 Speed
Bottom bracket
SRAM DUB BSA
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Carbon Fiber Monocoque
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
938 Alloy, Ibis Hubs
Tires
Schwalbe Nobby Nic 29” x 2.6”

Geometry

Size SM MD LG XL
a
Seat tube length
368,0
381,0
419,0
482,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
576,0
605,0
632,0
660,0
d
Head tube length
90,0
105,0
115,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
g
Trail
114,0
114,0
114,0
114,0
h
Wheelbase
1149,0
1180,0
1209,0
1238,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
39,0
39,0
39,0
39,0
k
Stack height
601,0
615,0
624,0
633,0
l
Reach
427,0
452,0
477,0
502,0
m
Standover height
710,0
714,0
744,0
757,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
-
-
-
-
