BikeWise

Ibis Ripmo AF NX 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
3,74 kg
Front travel
160mm
Rear travel
147mm

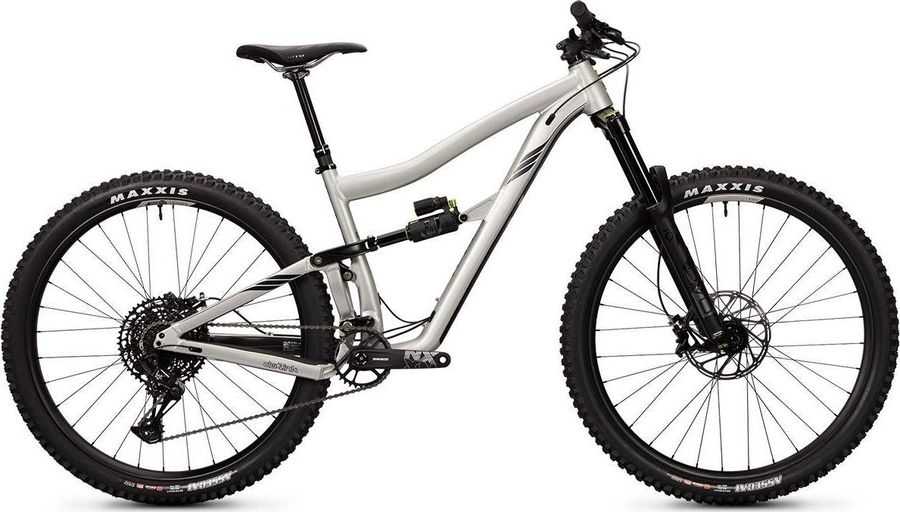

Ibis Ripmo AF NX 2020

About the Ibis Ripmo AF NX 2020

The Ibis Ripmo AF NX 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 3,74 kg.

Features

The Ibis Ripmo AF NX 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Lizard Skins Charger Evo
Components
Steam
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Saddle
WTB Silverado Pro 142mm width
Headset
ZS44 upper / ZS56 lower
Seatpost
KS Rage-i Dropper (125, 150 or 170mm)
Handlebar
Ibis 780mm Alloy
Discs
SRAM Centerline 200/180 rotors
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle, DUB spindle, 32t Steel Ring (170mm for S/M, 175mm for L/XL)
Shifter
SRAM NX Eagle
Bottom bracket
Threaded (73mm English threaded)
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Aluminum
Rear suspension
DVO Topaz T3
Front suspension
DVO Diamond D1
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs
Tires
Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi

Geometry

Size SM MD LG XL
a
Seat tube length
355,0
380,0
419,0
470,0
b
Seat tube angle
77,0º
76,0º
76,0º
76,0º
c
Top tube length
579,0
609,0
638,0
661,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
64,9º
64,9º
64,9º
64,9º
f
Rake
43,0
43,0
43,0
42,0
g
Trail
114,0
114,0
114,0
114,0
h
Wheelbase
1191,0
1222,0
1243,0
1268,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
619,0
626,0
635,0
648,0
l
Reach
437,0
464,0
481,0
501,0
m
Standover height
711,0
756,0
756,0
766,0
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
752,0
783,0
804,0
829,0
