Ibis Ripmo NX 2018

MTB Trail
Groupset
SRAM NX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
145mm

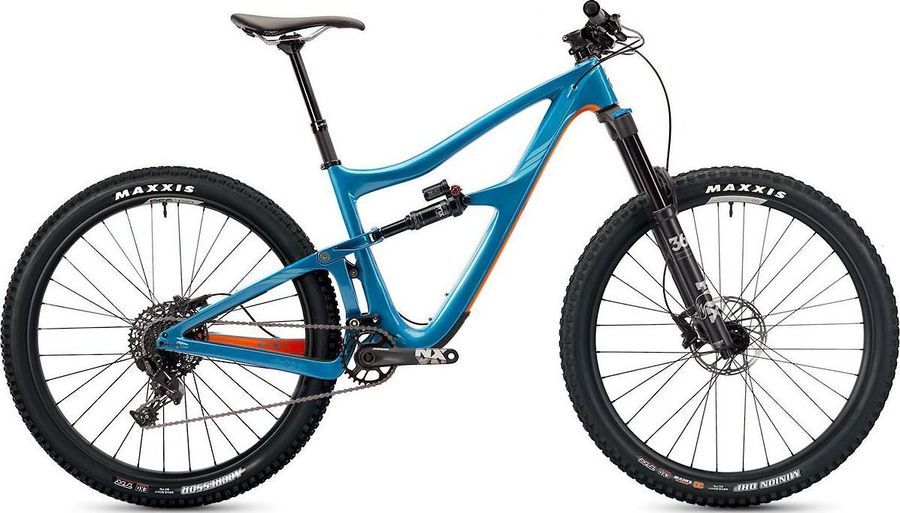

Ibis Ripmo NX 2018

About the Ibis Ripmo NX 2018

The Ibis Ripmo NX 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Ibis Ripmo NX 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Lizard Skins Logo
Components
Steam
Ibis, 50mm-90mm length options, 31.8mm clamp
Saddle
Ibis custom saddle, chromoly rails
Headset
Cane Creek 40, ZS44/ZS56
Seatpost
KS LEV-Si, 100mm, 125mm, 150mm drop options, KS Integra, 175mm drop option (+$80)
Handlebar
Ibis, alloy, 780mm width
Brake lever
SRAM Level
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
SRAM NX
Shifter
SRAM NX, 11-speed
Bottom bracket
73mm English threaded
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 Performance EVOL
Front suspension
Fox 36 Float Performance
Wheels
Rims
Ibis 938, alloy, 34mm inner width, 38mm outer width, 32 hole, tubeless ready
Tires
Front: Maxxis Minion DHF WT, 2.5”, Rear: Maxxis Aggressor WT, 2.5”
Spokes
Sapim CX-Ray
Rear hub
Ibis, 36 tooth 4 pawl ratchet, 10° engagement, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
Ibis, 36 tooth 4 pawl ratchet, 10° engagement, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
355,6
368,3
419,1
469,9
b
Seat tube angle
77,0º
76,0º
76,0º
76,0º
c
Top tube length
579,6
608,6
638,6
661,6
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
65,9º
65,9º
65,9º
65,9º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1183,6
1203,6
1234,6
1262,6
i
Chainstay length
441,6
441,6
441,6
441,6
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
619,6
630,6
635,6
648,6
l
Reach
437,6
452,6
477,6
499,6
m
Standover height
711,6
756,6
756,6
766,6
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
-
-
-
-
