Groupset
SRAM XX1
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
145mm

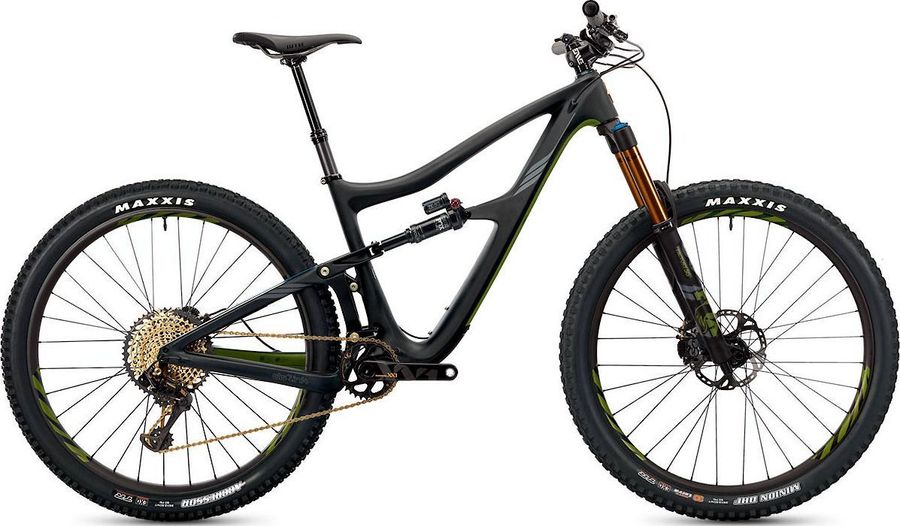

About the Ibis Ripmo XX1 Eagle 2018
The Ibis Ripmo XX1 Eagle 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Lizard Skins Logo
|
|---|
|
Steam
|
Enve Mountain Carbon, 40-70mm length options
|
|---|---|
|
Saddle
|
WTB Rocket V Team
|
|
Headset
|
Cane Creek 40, ZS44/ZS56
|
|
Seatpost
|
KS LEV Carbon, 175mm, 150mm, 125mm, 100mm drop options
|
|
Handlebar
|
Enve Carbon DH, 800mm width
|
|
Brake lever
|
Shimano Saint M820
|
|
Brakes
|
Shimano Saint BR-M820
438 (BL-M820) g
Hydraulic disc brake
4 piston
|
|
H03A Resin SM-RT86 |
|
|
Crankset
|
SRAM XX1 Eagle Carbon, 175mm length (170mm length optional)
|
|---|---|
|
Shifter
|
SRAM Eagle XX1, 12-speed
|
|
Bottom bracket
|
73mm English threaded
|
|
Cassette
|
SRAM XX1 XG1299 Eagle
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Chain
|
SRAM XX1 Eagle
239 g
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Performance EVOL
|
|
Front suspension
|
Fox 36 Float Factory
|
|
Rims
|
Ibis 942, alloy, 35mm inner width, 41mm outer width, 32 hole, tubeless ready
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF WT, 2.5”, Rear: Maxxis Aggressor WT, 2.5”
|
|
Spokes
|
Sapim CX-Ray
|
|
Rear hub
|
Industry Nine, 60 tooth, 6 pawls out of phase, 3° engagement, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
|
Front hub
|
Industry Nine, 60 tooth, 6 pawls out of phase, 3° engagement, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
355,6
|
368,3
|
419,1
|
469,9
|
|
b
Seat tube angle
|
77,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
579,6
|
608,6
|
638,6
|
661,6
|
|
d
Head tube length
|
90,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
65,9º
|
65,9º
|
65,9º
|
65,9º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1183,6
|
1203,6
|
1234,6
|
1262,6
|
|
i
Chainstay length
|
441,6
|
441,6
|
441,6
|
441,6
|
|
j
Bottom bracket drop
|
33,0
|
33,0
|
33,0
|
33,0
|
|
k
Stack height
|
619,6
|
630,6
|
635,6
|
648,6
|
|
l
Reach
|
437,6
|
452,6
|
477,6
|
499,6
|
|
m
Standover height
|
711,6
|
756,6
|
756,6
|
766,6
|
|
x
Bottom bracket height
|
341,0
|
341,0
|
341,0
|
341,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
