Kona Big Honzo 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm
Kona Big Honzo 2020

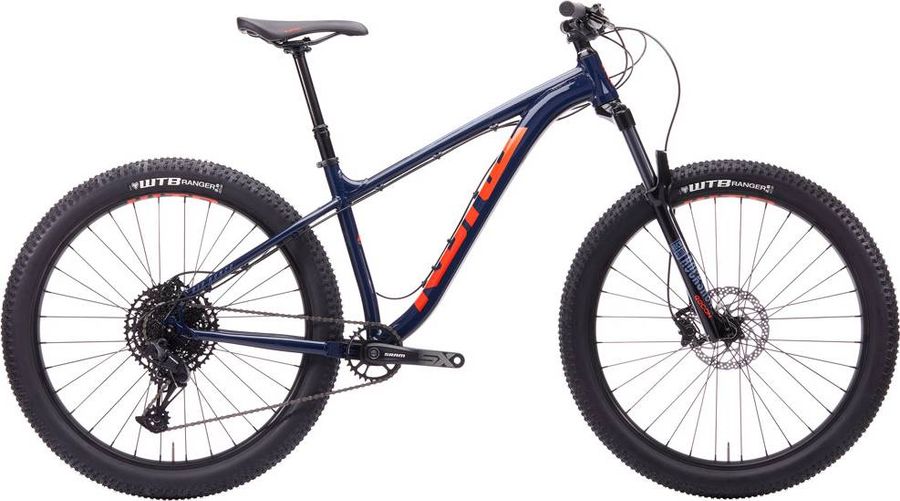

About the Kona Big Honzo 2020

The Kona Big Honzo 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Big Honzo 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip Slip on
Components
Steam
Kona XC/BC 35
Brakes
Shimano Hydraulic
Saddle
Kona Trail
Headset
FSA No.57B
Seatpost
Trans-X Dropper Internal 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT30 180mm (centerlock)
Brake lever
Shimano Hydraulic
Drivetrain
Crankset
SRAM SX-Eagle, 30t X-Sync Eagle
Shifter
SRAM SX-Eagle
Bottom bracket
SRAM Powerspline 73mm
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Kona 6061 Aluminum Butted
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i35 TCS
Tires
WTB Ranger 27.5x2.8"
Spokes
Stainless Black 14g
Rear hub
Shimano 148x12mm (centerlock)
Front hub
Shimano 110x15mm (centerlock)

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
596,0
623,0
651,0
688,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
91,0
h
Wheelbase
1148,0
1177,0
1206,0
1245,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
k
Stack height
626,0
635,0
644,0
653,0
l
Reach
429,0
454,0
479,0
514,0
m
Standover height
727,0
733,0
740,0
762,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
719,0
747,0
776,0
815,0
