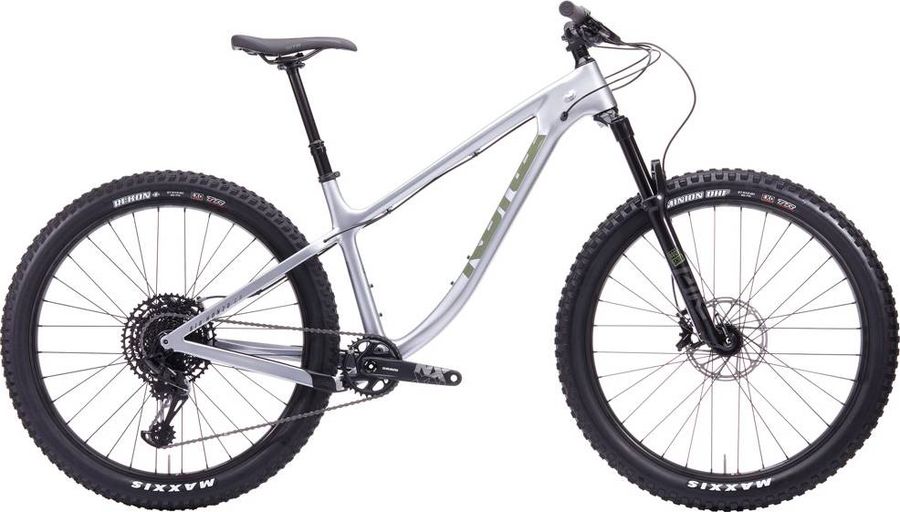

Kona Big Honzo CR 2020

MTB Trail
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm
Kona Big Honzo CR 2020

About the Kona Big Honzo CR 2020

The Kona Big Honzo CR 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Big Honzo CR 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Saddle
WTB Volt Sport (Sport 250 size S)
Headset
FSA No.57E
Seatpost
Trans-X Dropper Internal 31.6mm
Handlebar
Kona XC/BC 35
Discs
SRAM Centerline 180mm
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM NX-Eagle DUB, 32t X-Sync Eagle
Shifter
SRAM NX-Eagle
Bottom bracket
SRAM DUB PF92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM NX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Kona Carbon Trail
Front suspension
RockShox Pike Select DebonAir 1825 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SEL-B3
Name
Pike Select
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1825
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i35 TCS
Tires
Maxxis Minion DHF EXO TR DUAL 27.5x2.8"
Spokes
Stainless Black 14g
Rear hub
Formula 148x12mm
Front hub
Formula 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
362,0
412,0
462,0
522,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
586,0
614,0
642,0
680,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1140,0
1169,0
1197,0
1236,0
i
Chainstay length
426,0
426,0
426,0
426,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
k
Stack height
617,0
626,0
635,0
645,0
l
Reach
421,0
446,0
471,0
506,0
m
Standover height
691,0
691,0
691,0
691,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
718,0
747,0
776,0
815,0
