Kona Big Honzo DL 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm

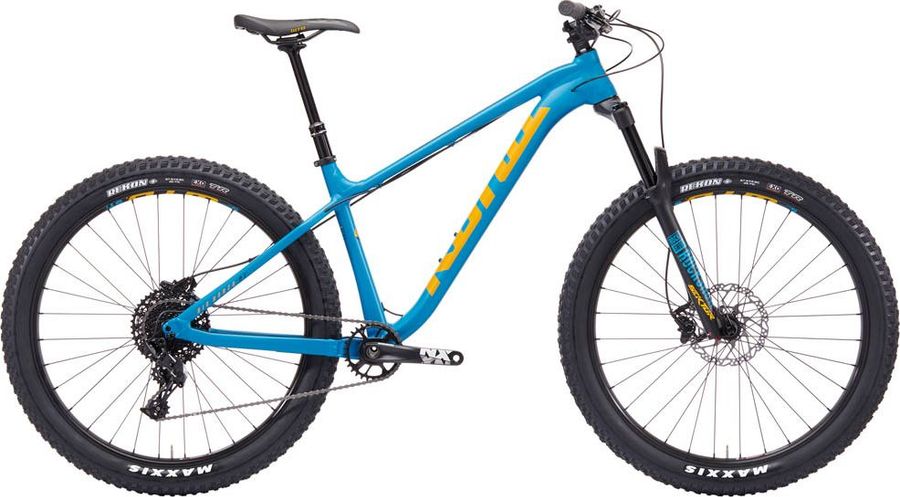

Kona Big Honzo DL 2019

About the Kona Big Honzo DL 2019

The Kona Big Honzo DL 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Big Honzo DL 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Brakes
Shimano Hydraulic
Saddle
WTB Volt Comp (Comp 250 size S)
Headset
FSA No.57B
Seatpost
Trans-X Dropper Internal 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT64 180mm (centerlock)
Brake lever
Shimano Hydraulic
Drivetrain
Crankset
SRAM NX, 30t Narrow/Wide
Shifter
SRAM NX
Bottom bracket
SRAM GXP PF92
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Kona 6061 Aluminum Butted
Front suspension
RockShox Sektor RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SKTR-RL-C1
Name
Sektor RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i35 TCS
Tires
Maxxis Rekon EXO TR DUAL 27.5x2.8"
Spokes
Stainless Black 14g
Rear hub
Shimano 148x12mm (centerlock)
Front hub
Shimano 110x15mm (centerlock)

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
595,0
623,0
650,0
688,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1148,0
1177,0
1205,0
1244,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
k
Stack height
625,0
634,0
643,0
653,0
l
Reach
429,0
454,0
479,0
514,0
m
Standover height
729,0
729,0
739,0
764,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
718,0
747,0
776,0
815,0
