Kona Big Honzo DL 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm

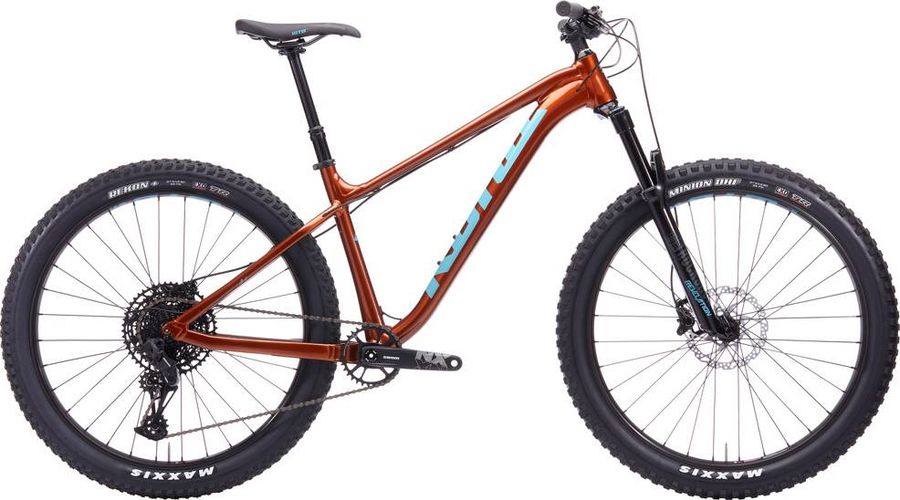

Kona Big Honzo DL 2020

About the Kona Big Honzo DL 2020

The Kona Big Honzo DL 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Big Honzo DL 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Brakes
Shimano Hydraulic
Saddle
WTB Volt Sport (Sport 250 size S)
Headset
FSA No.57B
Seatpost
Trans-X Dropper Internal 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT54 180mm (centerlock)
Brake lever
Shimano Hydraulic
Drivetrain
Crankset
SRAM NX-Eagle, 32t X-Sync Eagle
Shifter
SRAM SX-Eagle
Bottom bracket
SRAM DUB PF92
Chain
SRAM SX Eagle
Cassette
SRAM NX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Kona 6061 Aluminum Butted
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i35 TCS
Tires
Maxxis Minion DHF EXO TR DUAL 27.5x2.8"
Spokes
Stainless Black 14g
Rear hub
Shimano 148x12mm (centerlock)
Front hub
Shimano 110x15mm (centerlock)

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
595,0
623,0
650,0
688,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
92,0
92,0
92,0
92,0
h
Wheelbase
1148,0
1177,0
1205,0
1244,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
50,0
50,0
50,0
50,0
k
Stack height
625,0
634,0
643,0
653,0
l
Reach
429,0
454,0
479,0
514,0
m
Standover height
729,0
729,0
739,0
764,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
718,0
747,0
776,0
815,0
