BikeWise

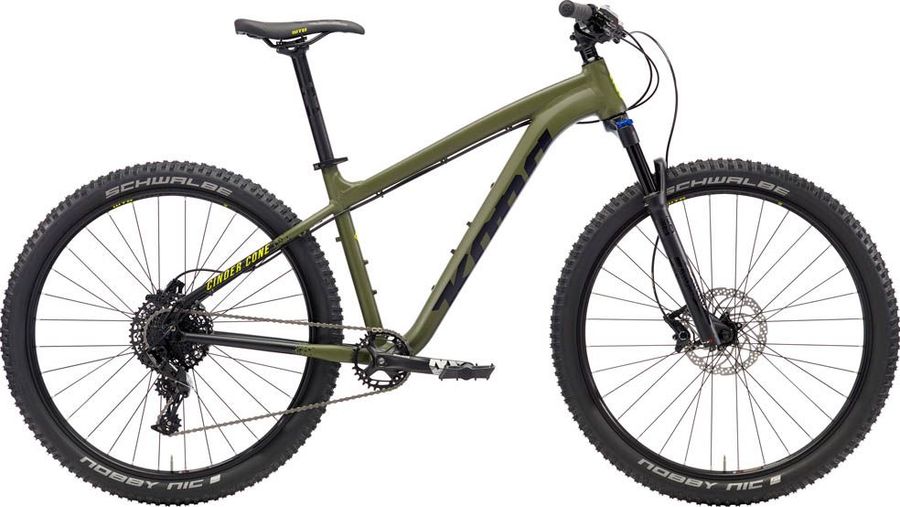

Kona Cinder Cone 2018

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
Kona Cinder Cone 2018

About the Kona Cinder Cone 2018

The Kona Cinder Cone 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Kona Cinder Cone 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Kona Key Grip Slip on
Pedals
Kona JS2
Components
Steam
Kona XC
Saddle
WTB Volt Sport SE (Volt 250 Sport SE size S)
Headset
FSA No.57B
Seatpost
Kona Thumb w/Offset 31.6mm
Handlebar
Kona XC/BC Riser
Discs
Shimano RT30 180mm (centerlock)
Brake lever
Shimano Hydraulic MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX, 30t Narrow/Wide
Shifter
SRAM NX
Bottom bracket
SRAM Powerspline 73mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Kona Race Light 6061 Aluminum Butted
Front suspension
RockShox 30 Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
58, 62
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-30G-RL-A2
Name
30 Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
26", 27.5", 29"
Wheels
Rims
WTB STP i25
Tires
Schwalbe Nobby Nic 27.5/26x2.25"
Spokes
Stainless Black 15g fr / 14g rr
Rear hub
Shimano 135x10mm (centerlock)
Front hub
Formula 100x9mm (centerlock)

Geometry

Size XS SM MD LG XL
a
Seat tube length
331,0
370,0
420,0
470,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
554,0
569,0
598,0
625,0
659,0
d
Head tube length
100,0
100,0
115,0
125,0
140,0
e
Head tube angle
68,0º
68,5º
68,5º
68,5º
68,5º
f
Rake
39,0
42,0
42,0
42,0
42,0
g
Trail
102,0
95,0
95,0
95,0
94,0
h
Wheelbase
1074,0
1090,0
1120,0
1148,0
1184,0
i
Chainstay length
424,0
434,0
434,0
434,0
434,0
j
Bottom bracket drop
30,0
50,0
50,0
50,0
50,0
k
Stack height
558,0
586,0
600,0
609,0
623,0
l
Reach
394,0
401,0
426,0
450,0
480,0
m
Standover height
676,0
714,0
724,0
729,0
749,0
x
Bottom bracket height
303,0
304,0
304,0
304,0
304,0
y
Front center
652,0
660,0
691,0
719,0
754,0
