Kona Hei Hei CR 2020

MTB Trail
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

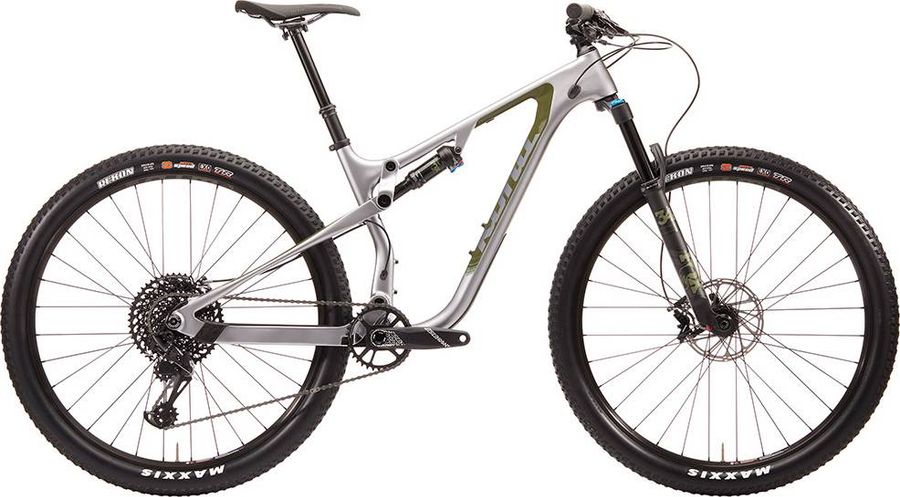

Kona Hei Hei CR 2020

About the Kona Hei Hei CR 2020

The Kona Hei Hei CR 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Hei Hei CR 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Saddle
WTB SL8
Headset
FSA No.57E
Seatpost
Fox Transfer w/1x RF Lever 31.6mm
Handlebar
Kona XC/BC 35
Discs
SRAM Centerline 180mm
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM Descendant 6K DUB, 34t X-Sync Eagle
Shifter
SRAM GX-Eagle
Bottom bracket
SRAM DUB PF92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Kona Race Light Carbon 120mm Travel
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
WTB KOM Light i27 TCS
Tires
Maxxis Rekon EXO TR 3C 29x2.25"
Spokes
Sandvik Stainless Black 2.0/1.8 Butted
Rear hub
DT Swiss 370 148x12mm
Front hub
DT Swiss 370 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
577,0
605,0
631,0
667,0
d
Head tube length
90,0
100,0
105,0
110,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
100,0
100,0
100,0
100,0
h
Wheelbase
1133,0
1162,0
1189,0
1226,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
595,0
604,0
609,0
614,0
l
Reach
419,0
444,0
469,0
504,0
m
Standover height
745,0
745,0
745,0
745,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
701,0
730,0
757,0
794,0
