Kona Hei Hei Race DL 2018

MTB Cross Country
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

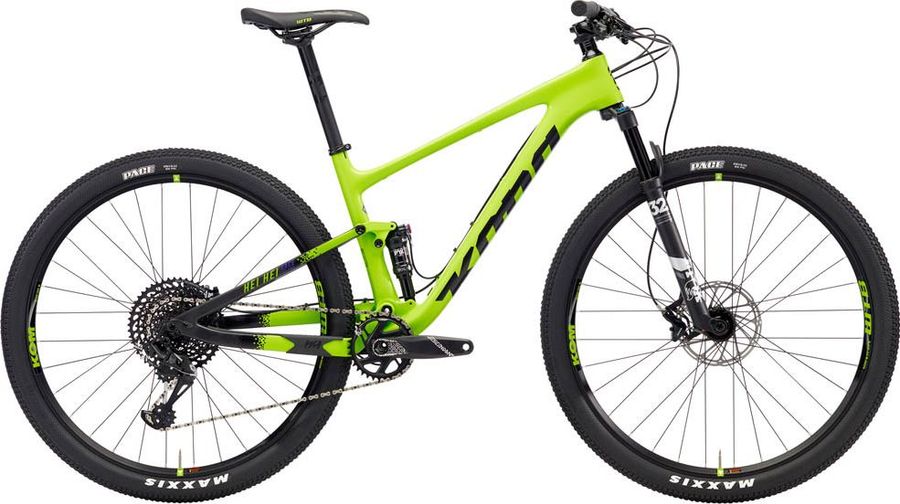

Kona Hei Hei Race DL 2018

About the Kona Hei Hei Race DL 2018

The Kona Hei Hei Race DL 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Kona Hei Hei Race DL 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Saddle
WTB Volt Comp (Comp 250 size S)
Headset
FSA No.57E
Seatpost
Kona XC/BC 31.6mm
Handlebar
Kona XC/BC 35
Discs
SRAM Centerline 180mm
Brake lever
SRAM Level TL
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM Descendant 6K, 34t X-Sync
Shifter
SRAM GX-Eagle
Bottom bracket
SRAM GXP PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Kona Race Light Carbon 100mm Travel
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
WTB KOM i25 TCS
Tires
Maxxis Pace 29x2.1"
Spokes
Stainless Black 15g
Rear hub
Formula 148x12mm
Front hub
Formula 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
567,0
594,0
622,0
654,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
90,0
89,0
89,0
89,0
h
Wheelbase
1101,0
1130,0
1159,0
1192,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
42,0
42,0
42,0
42,0
k
Stack height
593,0
603,0
612,0
621,0
l
Reach
409,0
434,0
459,0
489,0
m
Standover height
739,0
739,0
749,0
774,0
x
Bottom bracket height
326,0
326,0
326,0
326,0
y
Front center
670,0
700,0
728,0
762,0
