BikeWise

Kona Honzo AL 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

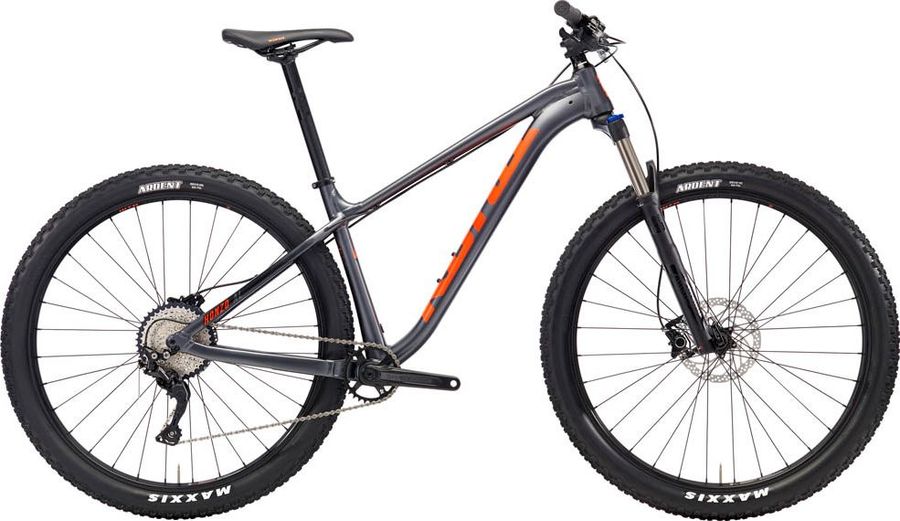

Kona Honzo AL 2018

About the Kona Honzo AL 2018

The Kona Honzo AL 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Kona Honzo AL 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Brakes
Shimano Hydraulic
Saddle
Kona Trail
Headset
FSA No.57B
Seatpost
Kona XC/BC 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT30 180mm (centerlock)
Brake lever
Shimano Hydraulic
Drivetrain
Crankset
RaceFace Aeffect, 30t Narrow/Wide
Shifter
Shimano Deore
Bottom bracket
Shimano PF92
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Kona 6061 Aluminum Butted
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB STP i29 TCS
Tires
Maxxis Ardent WB 29x2.4"
Spokes
Stainless Black 14g
Rear hub
Shimano Deore 148x12mm (centerlock)
Front hub
Shimano Deore 110x15mm (centerlock)

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
596,0
624,0
651,0
689,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
96,0
96,0
96,0
96,0
h
Wheelbase
1120,0
1148,0
1177,0
1216,0
i
Chainstay length
419,0
419,0
419,0
419,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
628,0
637,0
646,0
655,0
l
Reach
429,0
454,0
479,0
514,0
m
Standover height
734,0
734,0
744,0
764,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
709,0
737,0
766,0
805,0
