Kona Honzo CR Trail DL 2018

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

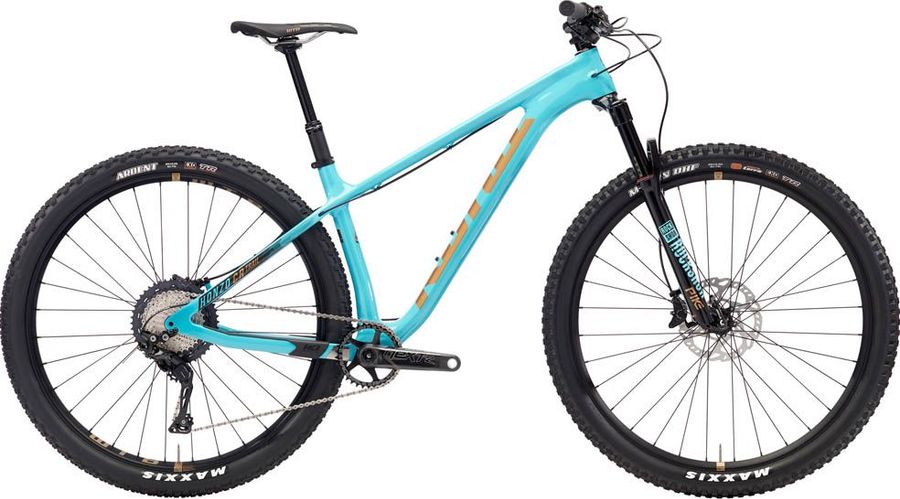

Kona Honzo CR Trail DL 2018

About the Kona Honzo CR Trail DL 2018

The Kona Honzo CR Trail DL 2018 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Honzo CR Trail DL 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Saddle
WTB SL8 Pro
Headset
FSA No.42
Seatpost
KS Lev Integra w/Southpaw Lever 34.9mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT70 180mm (centerlock)
Brake lever
Shimano SLX
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
RaceFace Next R, 34t Narrow/Wide
Shifter
Shimano XT
Bottom bracket
RaceFace PF92
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Kona Carbon Trail
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
WTB Asym i29 TCS
Tires
Maxxis Minion DHF EXO TR 3C 29x2.3"
Spokes
Stainless Black 14g
Rear hub
Shimano SLX 148x12mm (centerlock)
Front hub
Shimano SLX 110x15mm (centerlock)

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
598,0
624,0
651,0
661,0
d
Head tube length
95,0
100,0
105,0
110,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
98,0
98,0
98,0
98,0
h
Wheelbase
1120,0
1147,0
1174,0
1186,0
i
Chainstay length
419,0
419,0
419,0
419,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
635,0
640,0
644,0
649,0
l
Reach
429,0
454,0
479,0
489,0
m
Standover height
734,0
734,0
744,0
764,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
709,0
736,0
763,0
772,0
