Kona Honzo DL 2021

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
140mm

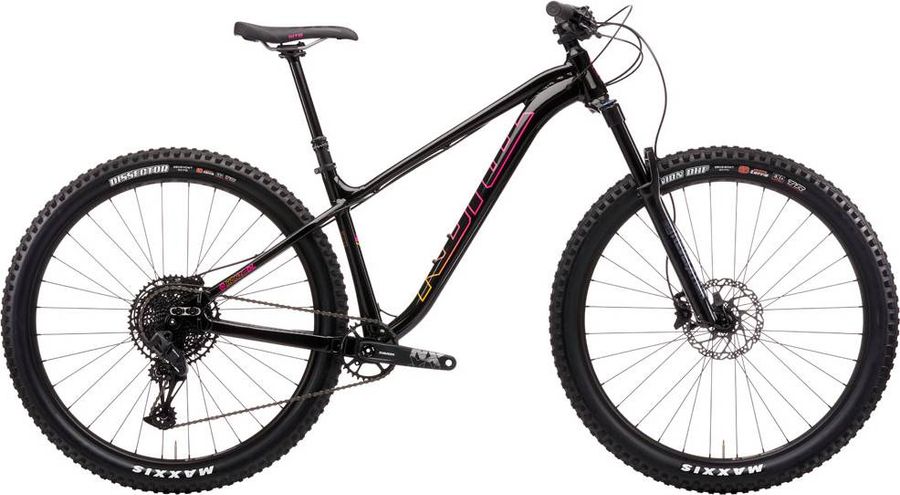

Kona Honzo DL 2021

About the Kona Honzo DL 2021

The Kona Honzo DL 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Honzo DL 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Saddle
WTB Volt
Headset
FSA No.57B
Seatpost
TranzX Dropper +RAD Internal 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT54 180mm (centerlock)
Brake lever
Shimano MT410 Hydraulic
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX-Eagle, 32t X-Sync Eagle
Shifter
SRAM SX-Eagle
Bottom bracket
SRAM DUB PF92
Chain
SRAM SX Eagle
Cassette
SRAM NX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Kona 6061 Aluminum Butted
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i30 TCS
Tires
Maxxis Dissector EXO TR 3C 29x2.4" WT
Spokes
Stainless Black 14g
Rear hub
Shimano 148x12mm (centerlock)
Front hub
Shimano 110x15mm (centerlock)

Geometry

Size SM MD LG XL
a
Seat tube length
385,0
410,0
450,0
485,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
584,0
611,0
639,0
676,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
111,0
111,0
111,0
h
Wheelbase
1148,0
1177,0
1206,0
1245,0
i
Chainstay length
419,0
419,0
419,0
419,0
j
Bottom bracket drop
62,5
62,5
62,5
62,5
k
Stack height
632,0
641,0
650,0
659,0
l
Reach
427,0
452,0
477,0
512,0
m
Standover height
715,0
713,0
712,0
710,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
736,0
765,0
794,0
833,0
