Kona Honzo ST 30th BDay SE 2019

MTB Trail
Groupset
SRAM NX
Frame material
Steel
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

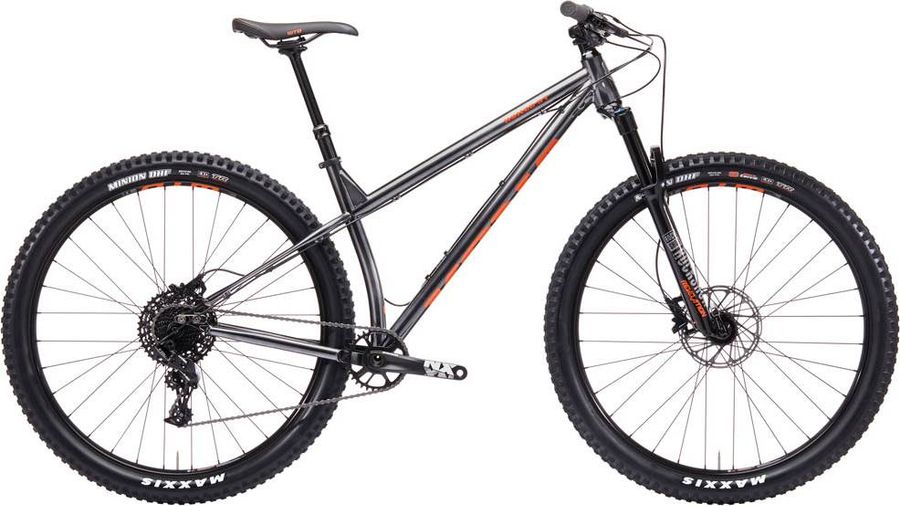

Kona Honzo ST 30th BDay SE 2019

About the Kona Honzo ST 30th BDay SE 2019

The Kona Honzo ST 30th BDay SE 2019 is a Hardtail Trail Mountain Bike with a steel frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Honzo ST 30th BDay SE 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35 30th Birthday Edition
Saddle
WTB Volt Comp (Comp 250 size S)
Headset
FSA No.57B
Seatpost
Trans-X Dropper Internal 31.6mm
Handlebar
Kona XC/BC 35 30th Birthday Edition
Discs
SRAM Centerline 180mm
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM NX, 32t Narrow/Wide
Shifter
SRAM GX
Bottom bracket
SRAM GXP 73mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Kona Cromoly Butted
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
WTB STP i29 TCS
Tires
Maxxis Minion DHF EXO TR 3C 29x2.3"
Spokes
Stainless Black 14g
Rear hub
Formula 148x12mm
Front hub
Formula 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
478,0
508,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
596,0
624,0
653,0
691,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
102,0
102,0
102,0
102,0
h
Wheelbase
1108,0
1137,0
1166,0
1204,0
i
Chainstay length
413,0
413,0
413,0
413,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
622,0
631,0
640,0
649,0
l
Reach
423,0
448,0
473,0
508,0
m
Standover height
711,0
709,0
708,0
706,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
703,0
732,0
761,0
799,0
