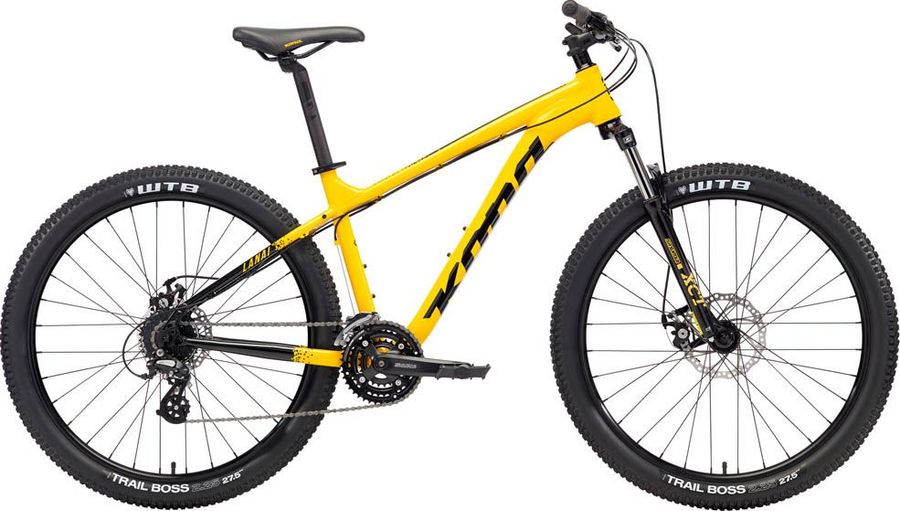

Kona Lana'i 2018
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Kona Lana'i 2018
The Kona Lana'i 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 24 gears (3x8).
Specifications
|
Grip
|
Kona Key Grip Slip on
|
|---|---|
|
Pedals
|
Kona JS2
|
|
Steam
|
Kona Control
|
|---|---|
|
Saddle
|
Kona XC
|
|
Headset
|
FSA No.57B
|
|
Seatpost
|
Kona Thumb w/Offset 31.6mm
|
|
Handlebar
|
Kona Aluminum Riser
|
|
Discs
|
Tektro Aries 180mm
|
|
Brake lever
|
Shimano EZ Fire Integrated
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Suntour XCE, 24/34/42t
|
|---|---|
|
Shifter
|
Shimano EZ Fire Integrated
|
|
Bottom bracket
|
CH52
|
|
Front derailleur
|
Shimano Altus
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
Kona 6061 Aluminum Butted
|
|---|---|
|
Front suspension
|
SR Suntour XCT
|
|
Rims
|
Double Wall alloy
|
|---|---|
|
Tires
|
WTB Trail Boss 27.5/26x2.25"
|
|
Spokes
|
Stainless Black 14g
|
|
Rear hub
|
Formula 135x10mm
|
|
Front hub
|
Formula 100x9mm
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
331,0
|
370,0
|
420,0
|
470,0
|
530,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
554,0
|
569,0
|
598,0
|
625,0
|
659,0
|
|
d
Head tube length
|
100,0
|
100,0
|
115,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
68,0º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
39,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
102,0
|
96,0
|
96,0
|
95,0
|
95,0
|
|
h
Wheelbase
|
1074,0
|
1089,0
|
1120,0
|
1148,0
|
1184,0
|
|
i
Chainstay length
|
424,0
|
434,0
|
434,0
|
434,0
|
434,0
|
|
j
Bottom bracket drop
|
30,0
|
50,0
|
50,0
|
50,0
|
50,0
|
|
k
Stack height
|
558,0
|
592,0
|
606,0
|
615,0
|
629,0
|
|
l
Reach
|
394,0
|
399,0
|
424,0
|
448,0
|
478,0
|
|
m
Standover height
|
676,0
|
715,0
|
722,0
|
728,0
|
751,0
|
|
x
Bottom bracket height
|
303,0
|
303,0
|
303,0
|
303,0
|
303,0
|
|
y
Front center
|
652,0
|
661,0
|
691,0
|
719,0
|
755,0
|
