BikeWise

Kona Operator DL 2018

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm
Kona Operator DL 2018

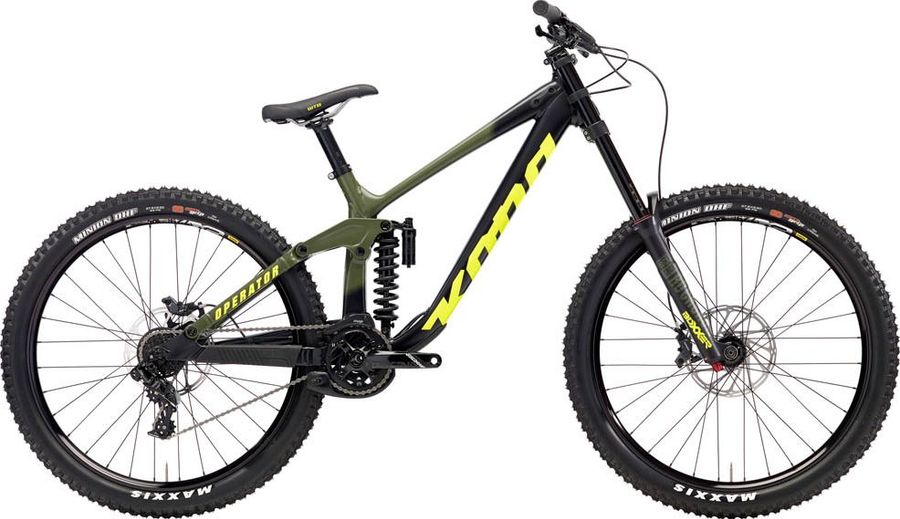

About the Kona Operator DL 2018

The Kona Operator DL 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes.

Features

The Kona Operator DL 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
RaceFace Atlas DM 35mm
Saddle
WTB Volt Race
Headset
FSA No.57SC
Seatpost
Kona OB 34.9mm
Handlebar
RaceFace Atlas 35mm
Discs
SRAM Centerline 200mm
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM Descendant DH, 36t
Shifter
SRAM GX DH
Chain guide
MRP G3 Steel
Bottom bracket
SRAM GXP PF
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM GX DH
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Kona DH 6061 Aluminum Butted 200mm Travel
Rear suspension
RockShox Super Deluxe Coil R
Body eyelet
Bearing, Standard, Trunnion
Compression tune
M
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-R-A1
Name
Super Deluxe Coil R
Rebound tune
M
Shaft eyelet
Bearing, Standard
Front suspension
RockShox Boxxer Team Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-TEAM-A2
Name
BoXXer Team
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Wheels
Rims
Mavic EX729
Tires
Maxxis Minion DHF DH 3C 27.5x2.5"
Spokes
Stainless Black 14g
Rear hub
Formula 157x12mm
Front hub
Formula 110x20mm

Geometry

Size 41cm 41cm 41cm
a
Seat tube length
410,0
410,0
410,0
b
Seat tube angle
76,5º
76,5º
76,0º
c
Top tube length
577,0
604,0
634,0
d
Head tube length
120,0
125,0
135,0
e
Head tube angle
63,0º
63,0º
63,0º
f
Rake
48,0
48,0
48,0
g
Trail
127,0
127,0
127,0
h
Wheelbase
1213,0
1241,0
1270,0
i
Chainstay length
416,0
416,0
416,0
j
Bottom bracket drop
10,0
10,0
10,0
k
Stack height
608,0
613,0
622,0
l
Reach
428,0
453,0
478,0
m
Standover height
713,0
713,0
713,0
x
Bottom bracket height
349,0
349,0
349,0
y
Front center
797,0
825,0
855,0
