BikeWise

Kona Process 134 27.5 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
134mm

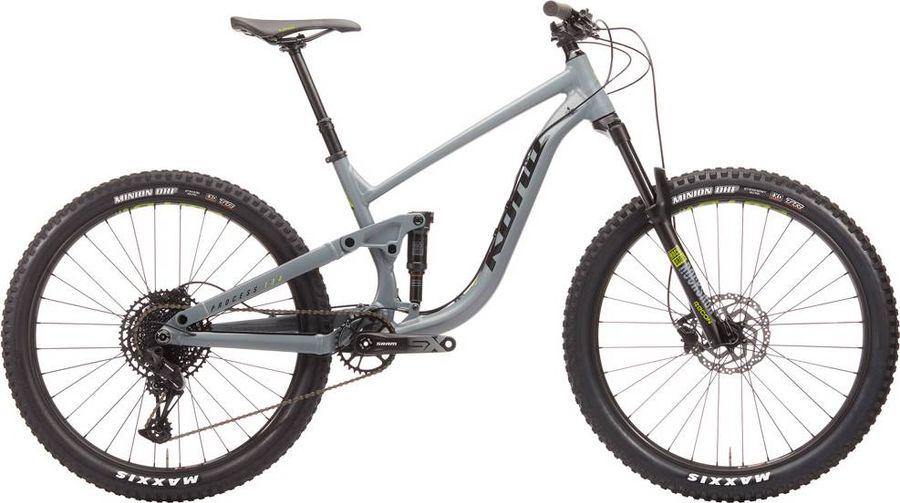

Kona Process 134 27.5 2020

About the Kona Process 134 27.5 2020

The Kona Process 134 27.5 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Process 134 27.5 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Brakes
Shimano Hydraulic
Saddle
Kona Trail
Headset
FSA No.57B
Seatpost
Trans-X Dropper Internal 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT10 (centerlock)
Brake lever
Shimano Hydraulic
Drivetrain
Crankset
SRAM SX-Eagle, 32t X-Sync Eagle
Shifter
SRAM SX-Eagle
Bottom bracket
SRAM DUB PF92
Cassette
SRAM SX Eagle
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Kona 6061 Aluminum Butted 134mm Travel
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
WTB ST i30 TCS
Tires
Maxxis Minion DHF EXO TR DUAL 27.5x2.5" WT
Spokes
Stainless Black 14g
Rear hub
Shimano 148x12mm
Front hub
Shimano 110x15mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
360,0
385,0
410,0
450,0
485,0
b
Seat tube angle
76,8º
76,6º
76,5º
76,3º
76,2º
c
Top tube length
531,0
561,0
590,0
619,0
658,0
d
Head tube length
116,0
127,0
138,0
149,0
160,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
107,0
108,0
107,0
108,0
108,0
h
Wheelbase
1125,0
1154,0
1184,0
1213,0
1253,0
i
Chainstay length
419,0
419,0
419,0
419,0
419,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
12,0
k
Stack height
579,0
589,0
599,0
609,0
620,0
l
Reach
394,0
419,0
444,0
469,0
504,0
m
Standover height
668,0
681,0
706,0
706,0
705,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
343,0
y
Front center
706,0
735,0
765,0
794,0
834,0
