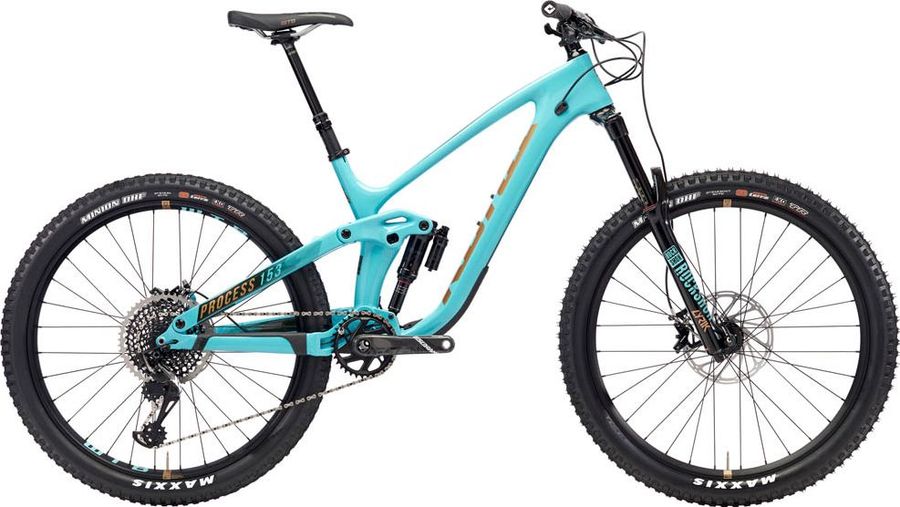

Kona Process 153 CR/DL 27.5 2018

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,29 kg
Front travel
160mm
Rear travel
153mm
Kona Process 153 CR/DL 27.5 2018

About the Kona Process 153 CR/DL 27.5 2018

The Kona Process 153 CR/DL 27.5 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,29 kg.

Features

The Kona Process 153 CR/DL 27.5 2018 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
ODI Elite Flow
Components
Steam
Kona XC/BC 35
Saddle
WTB Volt Race (Race 250 size S)
Headset
FSA No.57EP
Seatpost
Rock Shox Reverb w/Plunger Lever 31.6mm
Handlebar
Kona XC/BC 35
Discs
SRAM Centerline 200mm
Brake lever
SRAM Guide RSC
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM Descendant Carbon, 34t X-Sync Eagle
Shifter
SRAM GX-Eagle
Bottom bracket
SRAM GXP PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1295 X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Kona DH Carbon w/ 6061 Aluminum chain stays 153mm Travel
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB Asym i29 TCS
Tires
Maxxis Minion DHF EXO TR 3C 27.5x2.5"
Spokes
Stainless Black 14g
Rear hub
SRAM S900 148x12mm
Front hub
SRAM S900 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
385,0
410,0
450,0
485,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
575,0
602,0
631,0
670,0
d
Head tube length
115,0
120,0
130,0
140,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
111,0
112,0
112,0
112,0
h
Wheelbase
1162,0
1189,0
1218,0
1257,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
10,0
10,0
10,0
10,0
k
Stack height
604,0
609,0
618,0
627,0
l
Reach
427,0
452,0
477,0
512,0
m
Standover height
707,0
706,0
706,0
705,0
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
735,0
762,0
791,0
830,0
