BikeWise

Kona Process 153 CR/DL 29 TEAM REPLICA 2020

MTB Enduro
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
153mm

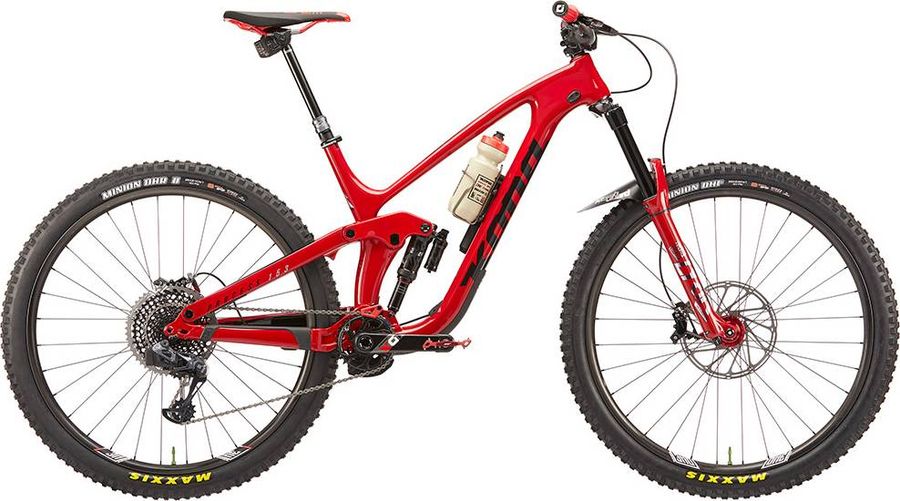

Kona Process 153 CR/DL 29 TEAM REPLICA 2020

About the Kona Process 153 CR/DL 29 TEAM REPLICA 2020

The Kona Process 153 CR/DL 29 TEAM REPLICA 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Process 153 CR/DL 29 TEAM REPLICA 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
ODI Elite Pro Lock On
Pedals
HT AE05 Flats & HT X2 Clipless
Components
Steam
OneUp EDC
Saddle
Diety Speedtrap
Headset
Chris King Inset 2
Seatpost
Rock Shox Reverb AXS 31.6mm
Handlebar
OneUp Carbon
Discs
SRAM Centerline 220mm
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X01-Eagle DUB, 32t X-Sync Eagle
Shifter
SRAM X01-Eagle AXS
Chain guide
OneUp Bash Guide V2
Bottom bracket
SRAM DUB PF92
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Kona DH Carbon w/ 6061 Aluminum Chain Stays 153mm Travel
Front suspension
RockShox Lyrik Ultimate RC2
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
We Are One The Union
Tires
Maxxis DHF DH TR 3C 29x2.5"
Spokes
Stainless Black 14g
Rear hub
Chris King ISO 148x12mm
Front hub
Chris King ISO 110x15mm

Geometry

Size MD LG XL
a
Seat tube length
406,0
450,0
482,0
b
Seat tube angle
76,0º
75,8º
75,7º
c
Top tube length
609,0
638,0
677,0
d
Head tube length
90,0
100,0
110,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
g
Trail
111,0
111,0
110,0
h
Wheelbase
1195,0
1224,0
1264,0
i
Chainstay length
431,0
431,0
431,0
j
Bottom bracket drop
29,0
29,0
29,0
k
Stack height
618,0
627,0
636,0
l
Reach
456,0
481,0
516,0
m
Standover height
708,0
708,0
707,0
x
Bottom bracket height
346,0
346,0
346,0
y
Front center
766,0
795,0
834,0
