Kona Process X 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
161mm

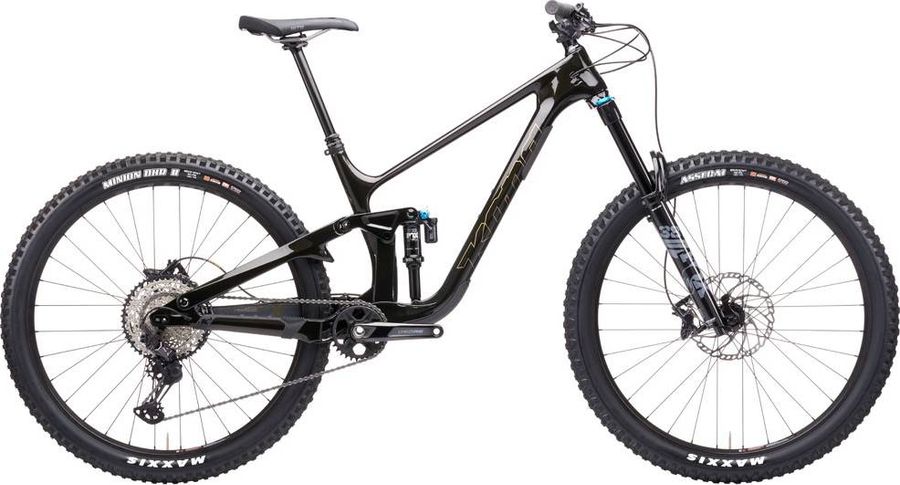

Kona Process X 2021

About the Kona Process X 2021

The Kona Process X 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Process X 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Saddle
WTB Volt
Headset
FSA Orbit 1.5 EP ZS
Seatpost
TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT66 203mm
Brake lever
Shimano Deore
Brakes
Shimano Deore
Drivetrain
Crankset
Shimano Deore, 32t
Shifter
Shimano XT 12spd
Bottom bracket
Shimano PF92
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Kona Carbon 161mm Travel
Rear suspension
Fox DPX2 Performance Elite
Front suspension
Fox 38 Performance
Wheels
Rims
WTB KOM Trail i30 TCS
Tires
Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Spokes
Stainless Black 14g
Rear hub
DT Swiss 370 148x12mm
Front hub
DT Swiss 370 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
380,0
420,0
450,0
b
Seat tube angle
78,2º
78,2º
78,0º
77,9º
c
Top tube length
566,0
591,0
620,0
659,0
d
Head tube length
94,0
94,0
105,0
116,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
136,0
140,0
140,0
140,0
h
Wheelbase
1210,0
1235,0
1265,0
1305,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
20,0
30,0
30,0
30,0
k
Stack height
612,0
612,0
622,0
632,0
l
Reach
437,0
462,0
487,0
522,0
m
Standover height
687,0
697,0
707,0
717,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
779,0
804,0
834,0
874,0
