Kona Process X DL 2021

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
161mm

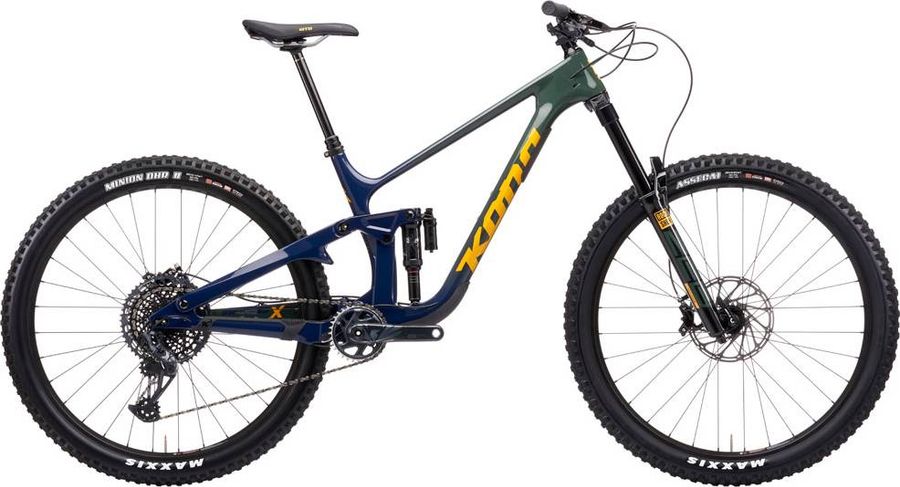

Kona Process X DL 2021

About the Kona Process X DL 2021

The Kona Process X DL 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kona Process X DL 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Components
Steam
Kona XC/BC 35
Saddle
WTB Volt
Headset
FSA Orbit 1.5 EP ZS
Seatpost
Rock Shox Reverb w/1x Remote Lever 31.6mm
Handlebar
Kona XC/BC 35
Discs
SRAM Centerline 200mm
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM GX-Eagle Carbon DUB, 32t X-Sync Eagle
Shifter
SRAM X01-Eagle
Bottom bracket
SRAM DUB PF92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1295 X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Kona Carbon 161mm Travel
Front suspension
RockShox ZEB Ultimate DebonAir, Dual Position Air 2265 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey
Damper type
Charger 2.1 RC2
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-ULT-A1
Name
ZEB Ultimate
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
WTB KOM Trail i30 TCS
Tires
Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Spokes
Double Butted Spokes – 14/15/14g
Rear hub
DT Swiss 350 148x12mm
Front hub
DT Swiss 350 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
380,0
420,0
450,0
b
Seat tube angle
78,2º
78,2º
78,0º
77,9º
c
Top tube length
566,0
591,0
620,0
659,0
d
Head tube length
94,0
94,0
105,0
116,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
136,0
140,0
140,0
140,0
h
Wheelbase
1210,0
1235,0
1265,0
1305,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
20,0
30,0
30,0
30,0
k
Stack height
612,0
612,0
622,0
632,0
l
Reach
437,0
462,0
487,0
522,0
m
Standover height
687,0
697,0
707,0
717,0
x
Bottom bracket height
345,0
345,0
345,0
345,0
y
Front center
779,0
804,0
834,0
874,0
