Kona Remote 160 DL 2021

E-Bike
MTB Enduro
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm

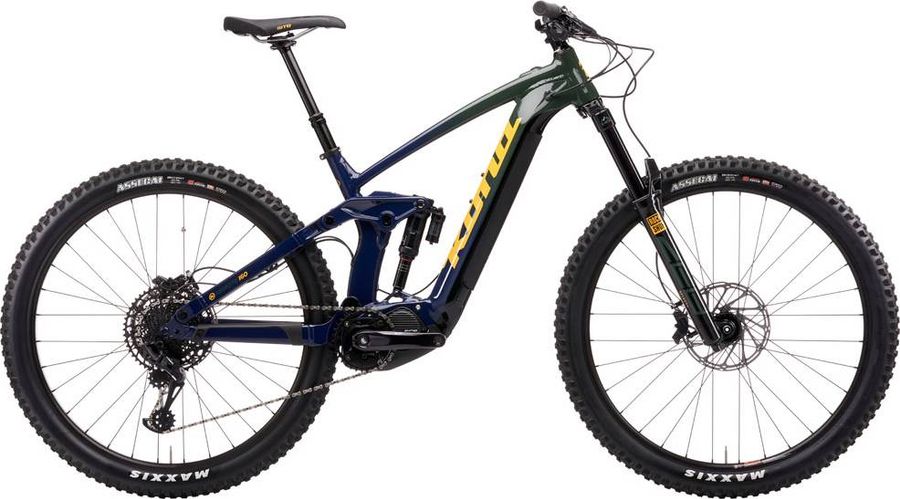

Kona Remote 160 DL 2021

About the Kona Remote 160 DL 2021

The Kona Remote 160 DL 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Kona Remote 160 DL 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Kona Key Grip
Remote
Shimano SC-EM800 Display
Components
Steam
Kona XC/BC 35
Saddle
WTB Volt
Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Headset
FSA No.57E
Seatpost
TranzX Dropper Internal 31.6mm
Handlebar
Kona XC/BC 35
Discs
SRAM Centerline 200mm
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Shimano M8150, 34t X-Sync Eagle
Motor
Shimano EP800 20MPH
Shifter
SRAM NX Single Click
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM NX Eagle
Rear derailleur
SRAM GX
Frameset
Frame
Kona 6061 Aluminum Butted 160mm Travel
Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-SEL-B2
Name
Super Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
440
Front suspension
RockShox ZEB Select+ DebonAir, Dual Position Air 2265 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-SELP-A1
Name
ZEB Select+
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Wheels
Rims
WTB HTZ i35 TCS 2.0
Tires
Maxxis Assegai EXO+ TR 3C 29x2.5"
Spokes
Stainless Black 14g
Rear hub
Formula 157x12mm
Front hub
Formula 110x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
385,0
410,0
450,0
485,0
b
Seat tube angle
75,1º
75,0º
74,9º
74,8º
c
Top tube length
584,0
611,0
640,0
679,0
d
Head tube length
115,0
120,0
130,0
140,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
126,0
127,0
127,0
127,0
h
Wheelbase
1,2e3
1227,0
1256,0
1296,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
25,0
25,0
25,0
25,0
k
Stack height
622,0
627,0
637,0
646,0
l
Reach
419,0
444,0
469,0
504,0
m
Standover height
754,0
769,0
767,0
780,0
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
761,0
788,0
818,0
857,0
