Kona Shred 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

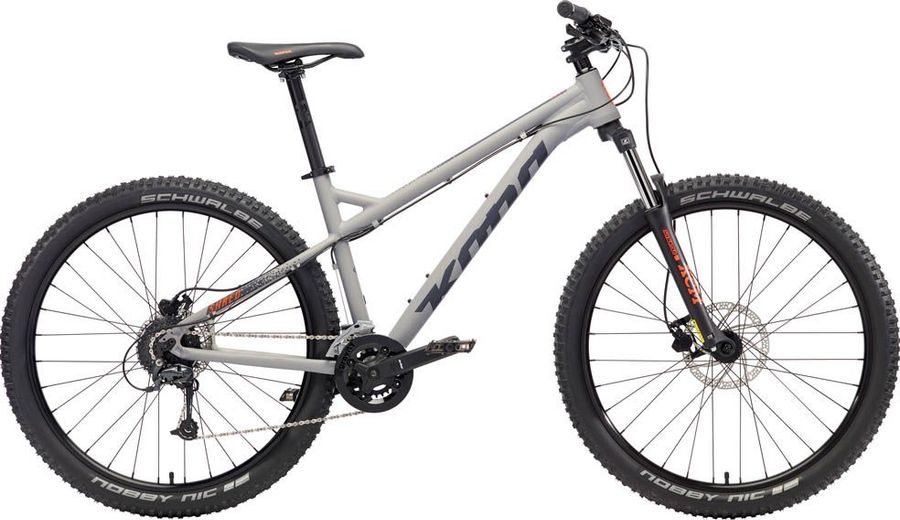

Kona Shred 2018

About the Kona Shred 2018

The Kona Shred 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes.

Features

The Kona Shred 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Kona S-LOG
Pedals
Wellgo Platform
Components
Steam
Kona DH
Saddle
Kona OB
Headset
FSA No.57B
Seatpost
Kona Thumb 31.6mm
Handlebar
Kona XC/BC Riser
Discs
Tektro Light Wave 180mm
Brake lever
Tektro Auriga
Brakes
Tektro Auriga
Drivetrain
Crankset
FSA Step-Up, 24/36t/Bash
Shifter
Shimano Altus
Bottom bracket
FSA RPM ISIS
Front derailleur
Shimano Altus
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X9
Frameset
Frame
Kona 6061 Aluminum Butted
Front suspension
SR Suntour XCM
Wheels
Rims
Double Wall alloy
Tires
Schwalbe Nobby Nic 27.5/26x2.25"
Spokes
Stainless 14g
Rear hub
Shimano 135x10mm
Front hub
Joytech 100x9mm

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
478,0
508,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
571,0
603,0
628,0
654,0
d
Head tube length
100,0
110,0
110,0
115,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
39,0
42,0
42,0
42,0
g
Trail
105,0
102,0
102,0
102,0
h
Wheelbase
1093,0
1132,0
1157,0
1184,0
i
Chainstay length
413,0
423,0
423,0
423,0
j
Bottom bracket drop
27,0
52,0
52,0
52,0
k
Stack height
563,0
610,0
610,0
614,0
l
Reach
414,0
433,0
458,0
483,0
m
Standover height
673,0
688,0
698,0
703,0
x
Bottom bracket height
310,0
299,0
299,0
299,0
y
Front center
681,0
714,0
739,0
766,0
