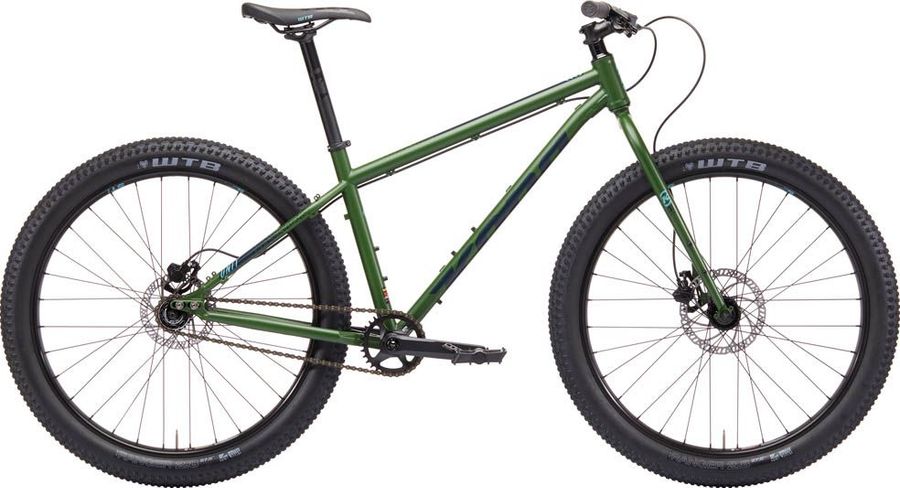

Kona Unit 2019
Frame material
Steel
Wheel size
27,5"
Suspension type
Rigid
About the Kona Unit 2019
The Kona Unit 2019 is a Rigid Cross Country Mountain Bike with a steel frame. Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Kona Key Grip
|
|---|---|
|
Pedals
|
Kona JS2
|
|
Steam
|
Kona XC/BC
|
|---|---|
|
Saddle
|
WTB Volt Comp (Comp 250 size S)
|
|
Headset
|
TH ZST No.10
|
|
Seatpost
|
Kona Thumb w/Offset 31.6mm
|
|
Handlebar
|
Kona XC/BC Riser
|
|
Discs
|
Tektro TR180 180mm
|
|
Brake lever
|
Tektro HDM275
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
FSA Comet Modular, 32t
|
|---|---|
|
Cassette
|
Joytech 18t
|
|
Bottom bracket
|
FSA 73mm
|
|
Chain
|
KMC Z1
|
|
Front suspension
|
Kona Plus Fork
|
|---|---|
|
Frame
|
Reynolds 520 Butted Cromoly
|
|
Rims
|
WTB ST i35 TCS
|
|---|---|
|
Tires
|
WTB Ranger TCS 27.5x2.8"
|
|
Spokes
|
Sandvik Stainless 15g fr / 14g rr
|
|
Rear hub
|
Formula 135x10mm
|
|
Front hub
|
Formula 100x9mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
370,0
|
420,0
|
470,0
|
530,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
572,0
|
600,0
|
627,0
|
660,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
50,0
|
50,0
|
50,0
|
50,0
|
|
g
Trail
|
83,0
|
83,0
|
83,0
|
83,0
|
|
h
Wheelbase
|
1096,0
|
1125,0
|
1153,0
|
1187,0
|
|
i
Chainstay length
|
446,0
|
446,0
|
446,0
|
446,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
577,0
|
586,0
|
596,0
|
605,0
|
|
l
Reach
|
408,0
|
433,0
|
457,0
|
488,0
|
|
m
Standover height
|
689,0
|
724,0
|
759,0
|
804,0
|
|
x
Bottom bracket height
|
300,0
|
300,0
|
300,0
|
300,0
|
|
y
Front center
|
657,0
|
686,0
|
714,0
|
747,0
|
