Kona Wo 2018

MTB Fatbike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
26"
Suspension type
Rigid

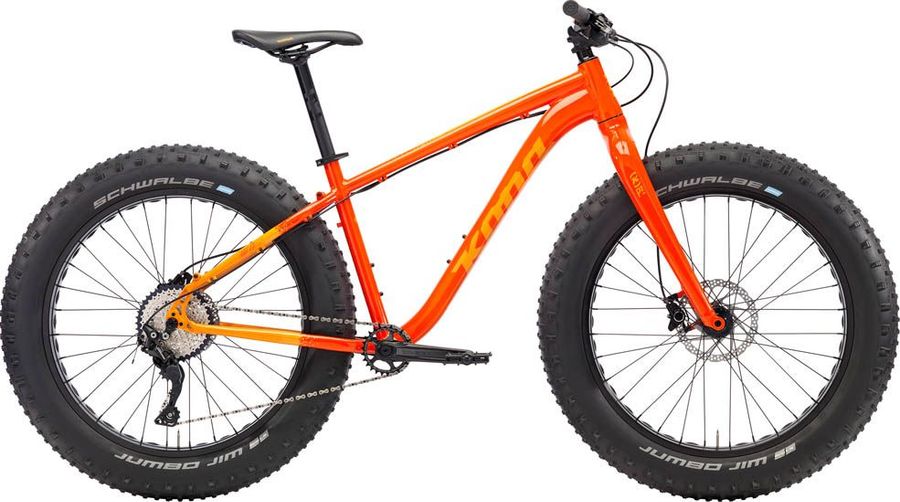

Kona Wo 2018

About the Kona Wo 2018

The Kona Wo 2018 is a Rigid Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.

Features

The Kona Wo 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Kona Key Grip
Pedals
Feimin Platform
Components
Steam
Kona XC/BC 35
Brakes
Shimano Hydraulic
Saddle
Kona Fat
Headset
FSA No.57B
Seatpost
Kona XC/BC 31.6mm
Handlebar
Kona XC/BC 35
Discs
Shimano RT56 180mm
Brake lever
Shimano Hydraulic
Drivetrain
Crankset
RaceFace Aeffect, 26t Narrow/Wide
Shifter
Shimano Deore
Bottom bracket
RaceFace 100mm
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Front suspension
Kona Wo Fat Disc
Frame
Kona Fat 6061 Aluminum Butted
Wheels
Rims
Shinning
Tires
Schwalbe Jumbo Jim EVO Liteskin 26x4.8"
Spokes
Stainless Black 14g
Rear hub
KT 197x12mm
Front hub
KT 150x15mm

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
432,0
483,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
589,0
617,0
645,0
677,0
d
Head tube length
120,0
130,0
140,0
150,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
55,0
55,0
55,0
55,0
g
Trail
73,0
73,0
74,0
73,0
h
Wheelbase
1123,0
1152,0
1180,0
1214,0
i
Chainstay length
453,0
453,0
453,0
453,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
606,0
615,0
625,0
634,0
l
Reach
403,0
428,0
453,0
483,0
m
Standover height
723,0
752,0
776,0
786,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
677,0
705,0
694,0
767,0
