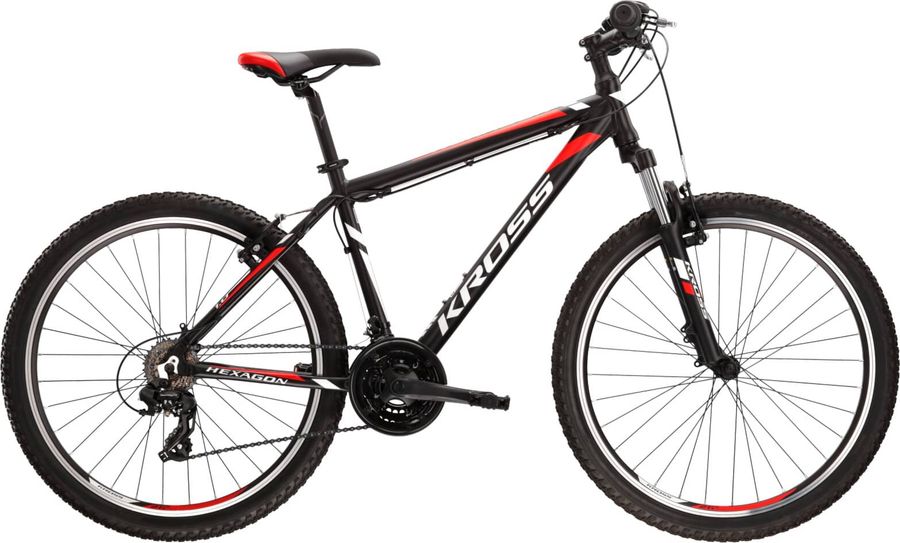

Kross HEXAGON 1.0 2021
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
26"
Suspension type
Rigid
About the Kross HEXAGON 1.0 2021
The Kross HEXAGON 1.0 2021 is a Rigid Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain.
Specifications
|
Pedals
|
FP-804
|
|---|
|
Steam
|
ALUMINIUM/ 31,8/7° (S- 75MM, M- 75MM, L- 90MM, XL- 105MM)
|
|---|---|
|
Brakes
|
V-BRAKE
|
|
Saddle
|
KROSS D5311
|
|
Headset
|
FP-H863 O1-1/8"
|
|
Seatpost
|
ALUMINIUM 27,2x350
|
|
Handlebar
|
ALUMINIUM 660 MM 31.8
|
|
Brake lever
|
ALUMINIUM
|
|
Chain
|
YBN S50
|
|---|---|
|
Crankset
|
WHEEL TOP
|
|
Shifter
|
SHIMANO RS36 REVOSHIFT
|
|
Bottom bracket
|
FP-B902
|
|
Front derailleur
|
SHIMANO TOURNEY TZ500
|
|
Rear derailleur
|
Shimano Tourney RD-TX800
SGS
8/7s
|
|
|
|
|
Cassette
|
Shimano MF-TZ500
|
|
Front suspension
|
KROSS
|
|---|---|
|
Frame
|
ALUMINIUM PERFORMANCE
|
|
Rims
|
KROSS
|
|---|---|
|
Tires
|
WANDA 26X2.1
|
|
Rear hub
|
GL-B01R
|
|
Front hub
|
GL-B01F-QR
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
-
|
-
|
-
|
-
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
550,0
|
570,0
|
585,0
|
600,0
|
|
d
Head tube length
|
120,0
|
120,0
|
135,0
|
150,0
|
|
e
Head tube angle
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
|
f
Rake
|
39,0
|
39,0
|
39,0
|
38,0
|
|
g
Trail
|
77,0
|
77,0
|
77,0
|
78,0
|
|
h
Wheelbase
|
1030,0
|
1050,0
|
1066,0
|
1081,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
35,0
|
35,0
|
35,0
|
35,0
|
|
k
Stack height
|
579,0
|
579,0
|
593,0
|
607,0
|
|
l
Reach
|
373,0
|
393,0
|
404,0
|
415,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
308,0
|
308,0
|
308,0
|
308,0
|
|
y
Front center
|
602,0
|
622,0
|
638,0
|
653,0
|
