Kross LEVEL 12.0 2021

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail

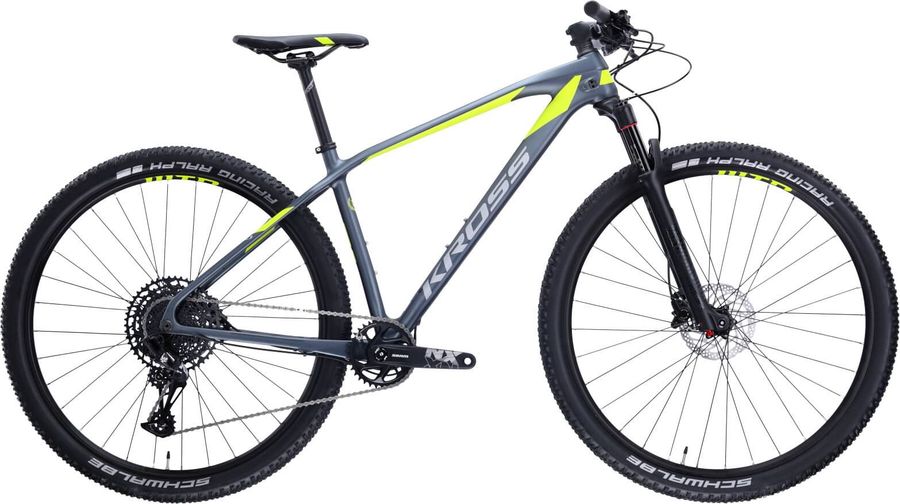

Kross LEVEL 12.0 2021

About the Kross LEVEL 12.0 2021

The Kross LEVEL 12.0 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include boost 110 e hydraulic disc brakes.

Features

The Kross LEVEL 12.0 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ALUMINIUM 80MM/31,8/17°
Saddle
SELLE ROYAL
Headset
FSA Orbit C-40-CF-ACB
Seatpost
ALUMINIUM 27,2x400
Handlebar
ALUMINIUM 720 MM 31.8
Brake lever
SHIMANO MT401
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX EAGLE
Shifter
SRAM SX EAGLE TRIGGER
Bottom bracket
SRAM PRESS FIT DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
CARBON T784
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
WTB ST I23
Tires
SCHWALBE RACING RALPH 29x2.25
Rear hub
SHIMANO MT400 12x142
Front hub
SHIMANO MT400 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
615,0
630,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
45,0
g
Trail
94,0
94,0
94,0
96,0
h
Wheelbase
1086,0
1106,0
1132,0
1148,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
57,0
57,0
57,0
57,0
k
Stack height
602,0
606,0
616,0
625,0
l
Reach
397,0
416,0
438,0
451,0
m
Standover height
-
-
-
-
x
Bottom bracket height
317,0
317,0
317,0
317,0
y
Front center
658,0
678,0
704,0
720,0
