Kross LEVEL 14.0 2021

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail

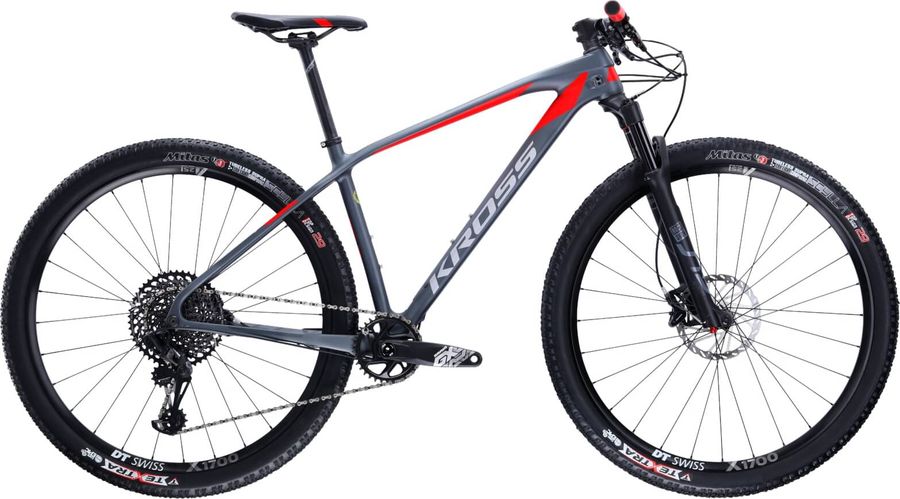

Kross LEVEL 14.0 2021

About the Kross LEVEL 14.0 2021

The Kross LEVEL 14.0 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include boost 110 e hydraulic disc brakes.

Features

The Kross LEVEL 14.0 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ALUMINIUM/ 31,8/17° (S- 70MM, M- 70MM, L- 80MM, XL- 80MM)
Saddle
SELLE ROYAL
Headset
FSA Orbit C-40-CF-ACB
Seatpost
ALUMINIUM/ 27,2 (S- 350MM, M- 350MM, L- 400MM, XL- 400MM)
Handlebar
ALUMINIUM 720 MM 31.8
Brake lever
SRAM LEVEL TL
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM GX EAGLE
Shifter
SRAM GX EAGLE
Bottom bracket
SRAM PRESS FIT DUB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
CARBON D84
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
DT SWISS X 1700 25mm
Tires
MITAS SCYLLA V75 29X2.25
Rear hub
DT SWISS 12x142
Front hub
DT SWISS 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
615,0
630,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
45,0
g
Trail
94,0
94,0
94,0
96,0
h
Wheelbase
1086,0
1106,0
1132,0
1148,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
57,0
57,0
57,0
57,0
k
Stack height
602,0
606,0
616,0
625,0
l
Reach
397,0
416,0
438,0
451,0
m
Standover height
-
-
-
-
x
Bottom bracket height
317,0
317,0
317,0
317,0
y
Front center
658,0
678,0
704,0
720,0
