Kross LEVEL 15.0 2021

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail

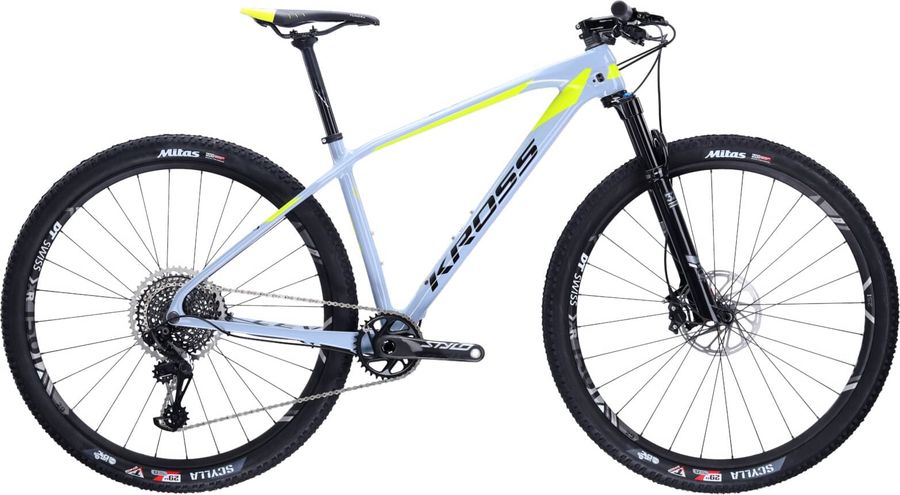

Kross LEVEL 15.0 2021

About the Kross LEVEL 15.0 2021

The Kross LEVEL 15.0 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include boost 110 e hydraulic disc brakes.

Features

The Kross LEVEL 15.0 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA Afterburner/ 31,8/12° (S- 80MM, M- 80MM, L- 90MM, XL- 90MM)
Saddle
F'IZI:K TUNDRA M5
Headset
FSA Orbit C-40-CF-ACB
Seatpost
FSA AFTERBURNER/ 27,2 (S- 350MM, M- 350MM, L- 400MM, XL- 400MM)
Handlebar
FSA AFTERBURNER 740MM 31.8
Brake lever
SRAM LEVEL TLM
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
TRUVATIV STYLO CARBON
Shifter
SRAM X01 EAGLE
Bottom bracket
SRAM PRESS FIT DUB
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM GX Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
CARBON D84
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
DT SWISS XR 1501 25mm
Tires
MITAS SCYLLA V75 29X2.25
Rear hub
DT SWISS 12x142
Front hub
DT SWISS 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
615,0
630,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
45,0
g
Trail
94,0
94,0
94,0
96,0
h
Wheelbase
1086,0
1106,0
1132,0
1148,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
57,0
57,0
57,0
57,0
k
Stack height
602,0
606,0
616,0
625,0
l
Reach
397,0
416,0
438,0
451,0
m
Standover height
-
-
-
-
x
Bottom bracket height
317,0
317,0
317,0
317,0
y
Front center
658,0
678,0
704,0
720,0
