Kross LEVEL 3.0 2022

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Kross LEVEL 3.0 2022

About the Kross LEVEL 3.0 2022

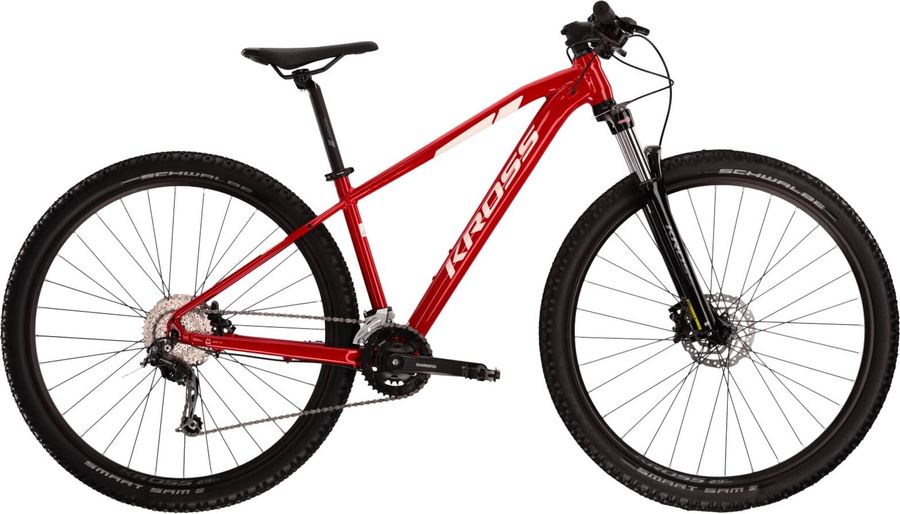

The Kross LEVEL 3.0 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include hydraulic disc brakes.

Features

The Kross LEVEL 3.0 2022 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
FP-917N
Components
Steam
ALUMINIUM 70MM/31,8/7°
Saddle
SELLE ROYAL
Headset
FP-H816 O1-1/8"
Seatpost
ALUMINIUM 27,2x350
Handlebar
ALUMINIUM 720 MM 31.8
Brake lever
JAK-Y2 NUTT
Brakes
FireCloud Cycles JAK Y2
Drivetrain
Crankset
SHIMANO MT101
Shifter
SHIMANO SL-M3100
Bottom bracket
FP-B902
Front derailleur
SHIMANO ALTUS M2020
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
Shimano CN-HG53 299 g
Average weight (g)
299
Chromizing treatment roller link pin
Model
CN-HG53
Pin link plate
Gray
Roller link plate
Brown
Type
HG 9-speed
Cassette
Shimano Altus CS-HG201-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG201-9
Steel gear finish
Ni-Ni plated (Top gear: Phosphate coated)
Steel gear pieces
9
Type
HG
Frameset
Frame
ALUMINIUM LITE
Front suspension
SR Suntour XCM-RL
Wheels
Rims
KROSS
Tires
SCHWALBE SMART SAM 29x2.25
Rear hub
MT200-B
Front hub
MT200

Geometry

Size SM MD LG XL XXL
a
Seat tube length
-
-
-
-
-
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
568,0
592,0
616,0
640,0
664,0
d
Head tube length
100,0
110,0
125,0
140,0
155,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
38,0
51,0
51,0
50,0
47,0
g
Trail
103,0
89,0
89,0
90,0
93,0
h
Wheelbase
1085,0
1125,0
1150,0
1175,0
1197,0
i
Chainstay length
445,0
445,0
445,0
445,0
445,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
609,0
619,0
633,0
647,0
661,0
l
Reach
393,0
415,0
435,0
455,0
475,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
647,0
687,0
712,0
737,0
758,0
