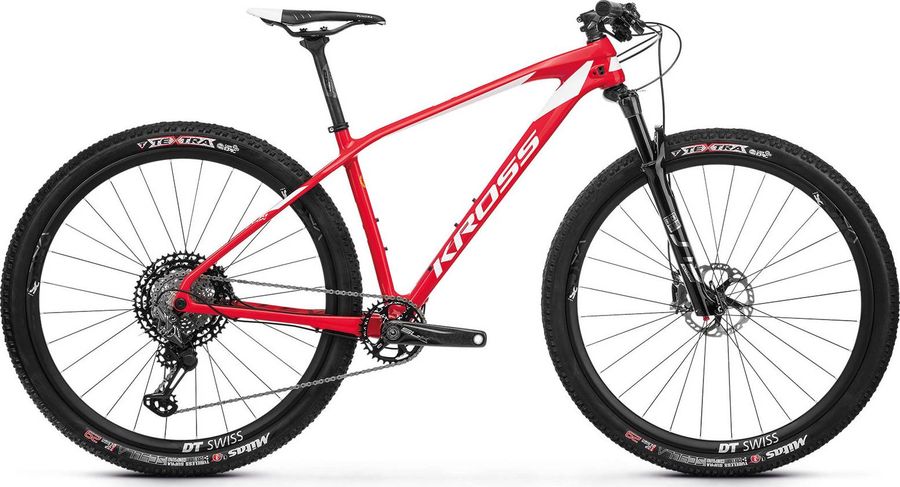

Kross LEVEL TE 2020

Women's Bike

MTB Cross Country

Groupset

Shimano XTR

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Front travel

100mm

About the Kross LEVEL TE 2020

The Kross LEVEL TE 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and hydraulic disc brakes.

Features

The Kross LEVEL TE 2020 has 6 features listed below.

Internal routing More info

Boost 110 More info

Hydraulic disc brakes More info

Tapered head tube More info

Remote lockout More info

Tubeless ready More info

Specifications

Acessories
Pedals	BRAK

Components
Steam	FSA K-Force (S/M - 80, L/XL - 90mm; 34mm, 31.8mm, rise: 12°)
Saddle	F'IZI:K TUNDRA M3 CARBON
Headset	FSA Orbit C-40-CF-ACB
Seatpost	FSA KFORCE SB0 27,2x350 CARBON
Handlebar	FSA K-Force Flat (760mm, 31.8mm)
Brake lever	SHIMANO XTR M9120
Brakes	Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g) 385 (BL-M9120) Brake hose color kit Black Brake hose kit SM-BH90-SBM Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Wiring Caliper fixing bolt material Ti Caliper fixing bolt tool size ** 4 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M9120 Mount type Post-type Oil SHIMANO Mineral Pad standard N03A Resin pad (w/ radiator fin) Pad standard N04C Metal pad (w/ radiator fin) Pad mount Pad axle Piston 4 Piston material Ceramic

Drivetrain
Crankset	FSA SL-K
Shifter	Shimano XTR SL-M9100 12sp
Bottom bracket	Shimano BB-MT800
Chain	Shimano CN-M9100 242 g
Average weight (g) 242 Chromizing treatment roller link pin Model CN-M9100 Pin link plate SIL-TEC Roller SIL-TEC Roller link plate Chromizing Type HG 12-speed
Cassette	Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish Painted Aluminum gear pieces 3 Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Combination 10-12-14-16-18-21-24-28-32-36-40-45 10-12-14-16-18-21-24-28-33-39-45-51 Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Micro spline Model CS-M9100-12 Speeds 12 Steel gear finish Plated Steel gear pieces 4 Titanium gear finish Shot Titanium gear pieces 5 Type HYPERGLIDE+ Weights 10-45T: 357g 10-51T: 367g
Rear derailleur	Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g) 240 B axle finish Anodized B axle hollow B axle material Aluminum Bracket body finish Anodized Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M9100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T

Frameset
Frame	D84 Carbon SL
Front suspension	RockShox SID World Cup DebonAir
Color Diffusion Black, Gloss Black Damper type Charger 2 fork offset 42mm (27.5"), 51mm (29") Max tire width (mm) 62, 81 Maximum rotor size 203mm, 220mm Minimum rotor size 160mm Model FS-SID-WC-B3 Name SID World Cup Spring DebonAir Travel (mm) 100mm Upper tube type 32mm straight wall aluminum Wheel size 27.5", 29"

Wheels
Rims	DT SWiSS XRC 1200 SPLINE Carbon (29, Tubeless Ready, 25mm)
Tires	MITAS SYRINX V80 700X25
Rear hub	DT SWiSS XRC 1200 SPLINE (12x142mm, 25mm)
Front hub	DT SWiSS XRC 1200 SPLINE (15x110mm, 25mm)
