Kross LEVEL TE 2021

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Kross LEVEL TE 2021

About the Kross LEVEL TE 2021

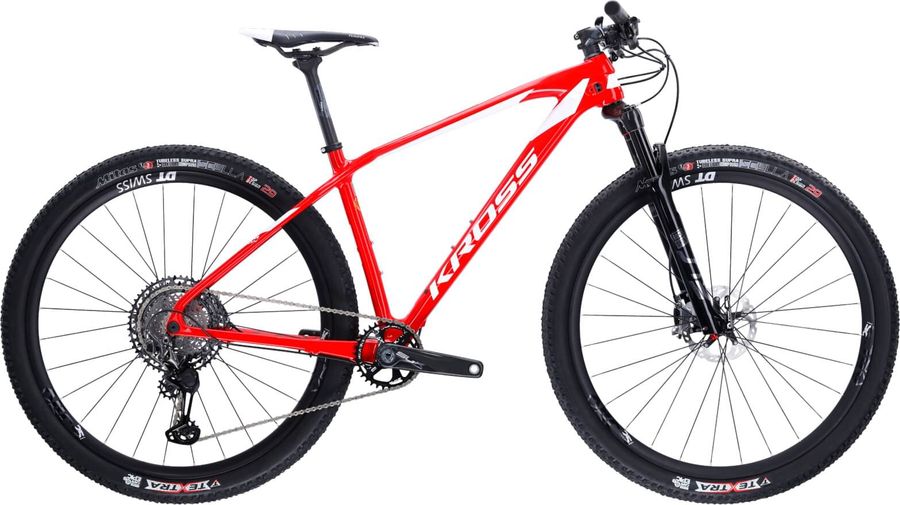

The Kross LEVEL TE 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain. Its features include boost 110 e hydraulic disc brakes.

Features

The Kross LEVEL TE 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA K-FORCE/ 31,8/12° (S- 80MM, M- 80MM, L- 90MM, XL- 90MM)
Saddle
F'IZI:K TUNDRA M3 CARBON
Headset
FSA Orbit C-40-CF-ACB
Seatpost
FSA K-FORCE SB0/ 27.2 (S- 350MM, M- 350MM, L- 400MM, XL- 400MM)
Handlebar
FSA K-FORCE 760MM 31.8 DI2
Brake lever
SHIMANO XTR M9120
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
FSA SL-K
Shifter
SHIMANO XTR M9100
Bottom bracket
FSA BB392
Rear derailleur
Shimano XTR RD-M9100-GS 237 g GS 12s
Average weight (g)
237
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M9100-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
35T
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Frameset
Frame
CARBON D84
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Wheels
Rims
DT SWISS XRC 1200 CARBON
Tires
MITAS SCYLLA V75 29X2.25
Rear hub
DT SWISS 12x142
Front hub
DT SWISS 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
570,0
590,0
615,0
630,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
46,0
46,0
46,0
45,0
g
Trail
94,0
94,0
94,0
96,0
h
Wheelbase
1086,0
1106,0
1132,0
1148,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
57,0
57,0
57,0
57,0
k
Stack height
602,0
606,0
616,0
625,0
l
Reach
397,0
416,0
438,0
451,0
m
Standover height
-
-
-
-
x
Bottom bracket height
317,0
317,0
317,0
317,0
y
Front center
658,0
678,0
704,0
720,0
