Kross SOIL BOOST 1.0 630 2021

E-Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension

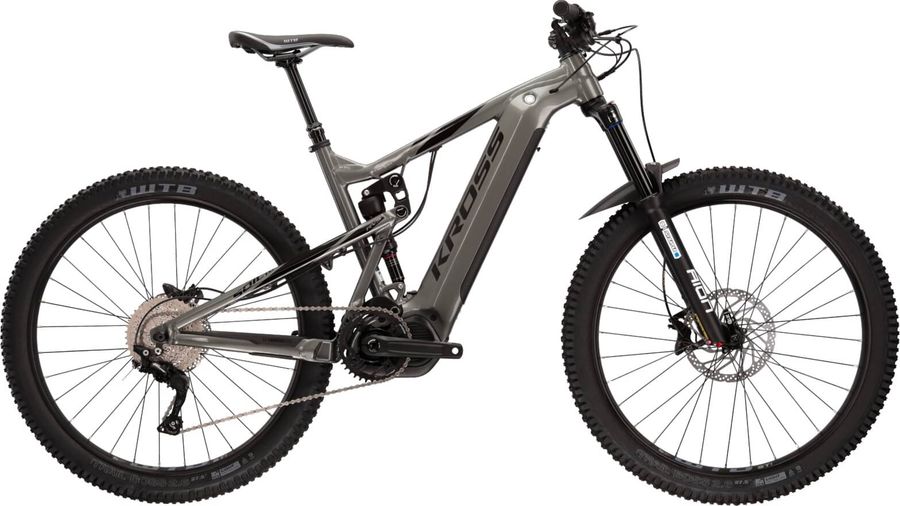

Kross SOIL BOOST 1.0 630 2021

About the Kross SOIL BOOST 1.0 630 2021

The Kross SOIL BOOST 1.0 630 2021 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Kross SOIL BOOST 1.0 630 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
SHIMANO SC-E8000
Components
Steam
ALUMINIUM 55MM/35/0°
Saddle
WTB VOLT SPORT
Battery
SIMPLO 630 WH
Charger
36V / 4A
Headset
FP-H856B2;1-1/8"-1.5"
Seatpost
TRANZX JD-YSP23J 412x125; 30,9
Handlebar
ALUMINIUM 780 MM 35
Brake lever
SHIMANO MT501
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA-CK751
Motor
SHIMANO E8000
Shifter
SHIMANO DEORE M6000
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
Shimano CN-E6090-10 276 g
Average weight (g)
276
Chromizing treatment roller link pin
Model
CN-E6090-10
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X 10-speed
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ALUMINIUM LITE
Front suspension
SR Suntour Aion 35
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
WTB SCRAPER I40
Tires
WTB TRAIL BOSS 27,5x2.6 TCS
Rear hub
SHIMANO MT400 12x148
Front hub
SHIMANO MT400 15x110

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
576,0
596,0
621,0
646,0
d
Head tube length
100,0
100,0
120,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
104,0
104,0
104,0
104,0
h
Wheelbase
1155,0
1175,0
1203,0
1228,0
i
Chainstay length
445,0
445,0
445,0
445,0
j
Bottom bracket drop
32,0
32,0
32,0
32,0
k
Stack height
593,0
593,0
612,0
612,0
l
Reach
417,0
437,0
457,0
482,0
m
Standover height
-
-
-
-
x
Bottom bracket height
323,0
323,0
323,0
323,0
y
Front center
712,0
732,0
760,0
785,0
