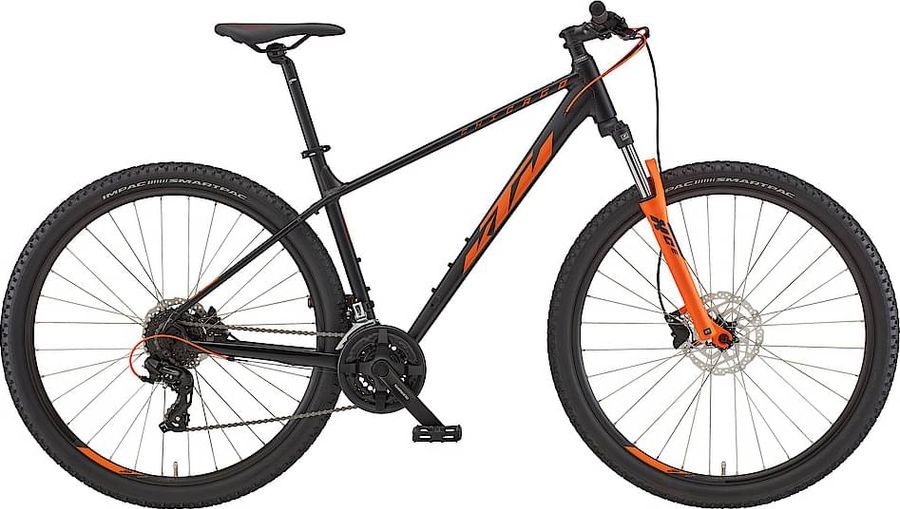

KTM CHICAGO 292 2022
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
15,4 kg
Front travel
100mm
About the KTM CHICAGO 292 2022
The KTM CHICAGO 292 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 15,4 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
KTM LINE 7°
|
|---|---|
|
Saddle
|
KTM LINE SPORT
|
|
Headset
|
RITCHEY Zero Logic PRESS FIT 1-1/8"
|
|
Seatpost
|
KTM LINE 27.2
|
|
Handlebar
|
KTM LINE Riser 12 680-720mm
|
|
Discs
|
Shimano Altus RT10 CL 180 / Altus RT10 CL 160
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Crankset
|
Shimano Tourney TY301-3 / 42-34-22T
|
|---|---|
|
Shifter
|
brake/shiftlever combination
|
|
Cassette
|
Shimano TourneyTX CS-HG200-8
|
|
Chain
|
KMC Z8
|
|
Frame
|
29" Alloy 6061 MTB M1110
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
KTM Line - Shimano Tourney HB-TX505 CL 32H 100 QR / KTM 28" Sport 32H / Pillar 2.0 INOX silver
|
|---|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
572,0
|
592,0
|
612,0
|
632,0
|
|
d
Head tube length
|
100,0
|
110,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
97,0
|
97,0
|
97,0
|
97,0
|
|
h
Wheelbase
|
1085,0
|
1106,0
|
1128,0
|
1149,0
|
|
i
Chainstay length
|
437,0
|
437,0
|
437,0
|
437,0
|
|
j
Bottom bracket drop
|
70,0
|
70,0
|
70,0
|
70,0
|
|
k
Stack height
|
602,0
|
611,0
|
626,0
|
639,0
|
|
l
Reach
|
398,0
|
416,0
|
432,0
|
448,0
|
|
m
Standover height
|
759,0
|
766,0
|
796,0
|
828,0
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
304,0
|
304,0
|
|
y
Front center
|
657,0
|
678,0
|
700,0
|
721,0
|
